DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board

DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
-12 % Out Of Stock
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board
₹1,758
₹1,999

(inc GST)

  • Stock: Out Of Stock
  • ₹17 FlyRobo Cashback.
  • SKU: FR-07-829
    5 or more ₹1,706
    15 or more ₹1,677

DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board includes an Electronic Welding Module that is an important part. Spot welding is welded by the principle of rapid local heating and cooling by high current.

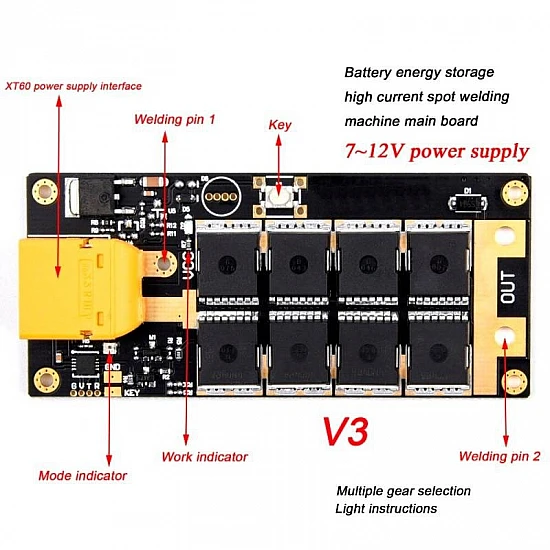

Button Function:



The button can switch modes. Each mode corresponds to a different welding time. The LED corresponds to red/green/blue/white/yellow/powder/purple, 7 modes, the shortest red time, and the largest purple welding time. Long press to set the waiting time, the default is 3 seconds, the maximum can be set to 10 seconds

Features:

  • The product is Portable and Durable that it can easily carry anywhere.
  • 3 Cell or 4 cell lipo battery can be directly connected with it.
  • High-quality 12 AWG  Silicone Wire
  • Stable and Reliable.
  • It is easy to weld the common 0.1mm~0.15mm nickel-plated sheet.
  • It can be used for welding 18650/26650/32650 lipo batteries.

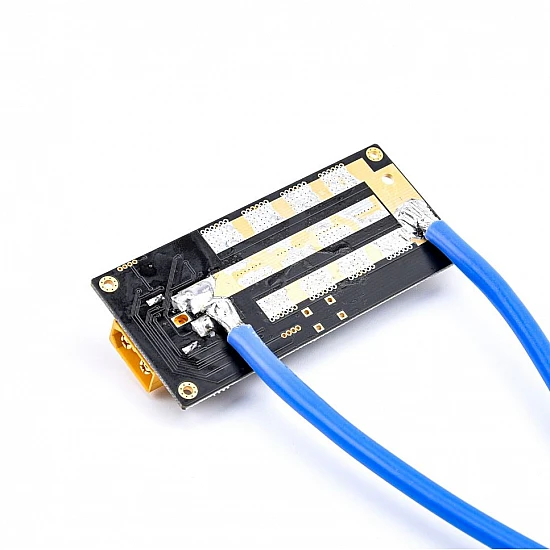

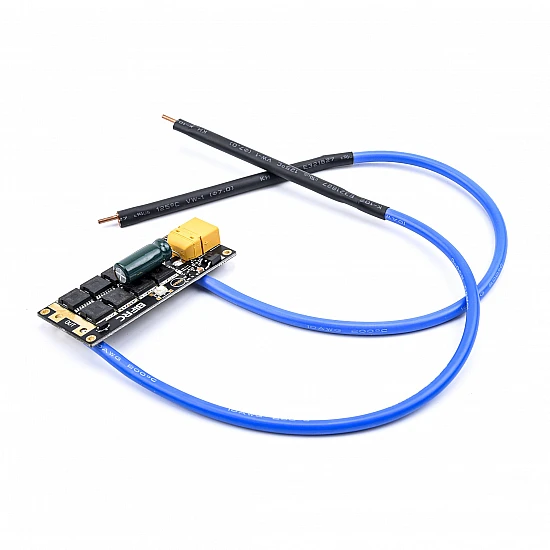

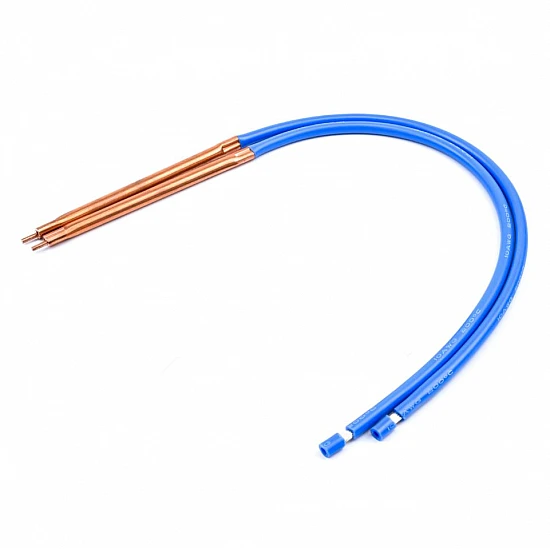

  • Output wire with soldering pen is already soldered to the circuit board, and Capacitor is also soldered. It is a ready to use product.

compatible battery to buy:

Package Includes:

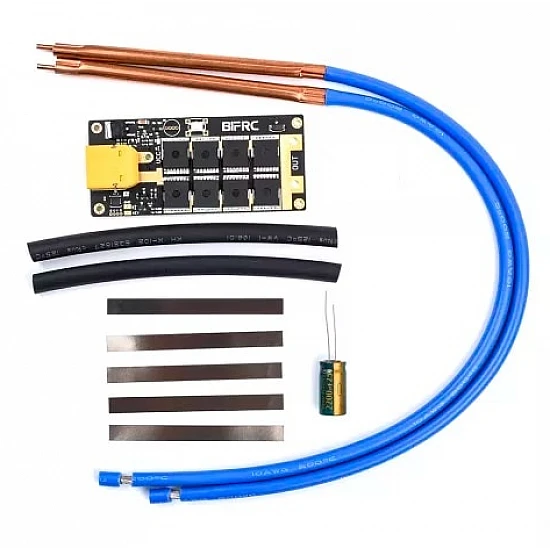

1 x DIY Portable 12V Battery Energy Storage V3 Spot Welding Machine PCB Circuit Board. ( pre-assembled)

Technical
Supply Voltage

12 - 16.8V

Welding Current

90 - 130A

Working Current

90 - 150A

Length

80 mm

Width

35 mm

Questions1 Answers2 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?641
Is there a user manual that we can refer ?
Raghu Peethambaran
  • Sorry sir, The User manual does not come with it. but sir it does not require a user manual because of its simple connection. you just need to connect the lipo battery with the XT60 connector and you will be able to use it. if you are using other you just need to use the XT60 connector to connect with it.
    FlyRobo[ 19/07/2022 ]
    Was this answer helpful?1
