DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver

DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver

DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver
₹799

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹7 FlyRobo Cashback.
  • SKU: FR-01-931

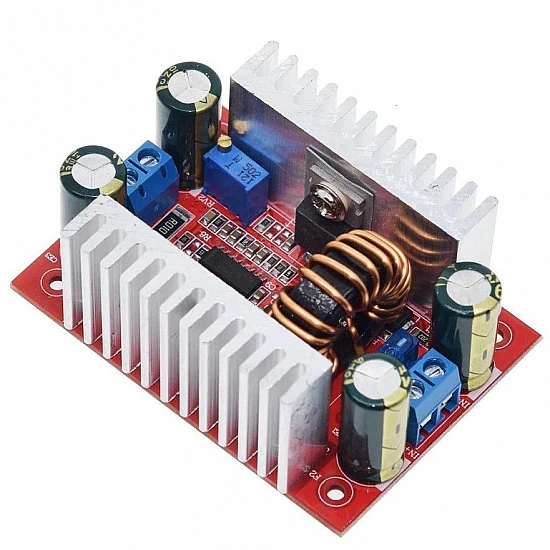

400W 15A DC-DC Boost Converter Step-up Module is a handy power accessory board that allows you to fine-tune the amount of power your project receives.

This converter can take an input voltage of anywhere from DC 8.5V-50V which can then be regulated to an output voltage between 10-60V continuously adjustable. With a wide input voltage range from 8.5V-50V, the Step-up converter can accurately adjust the output voltage and current.

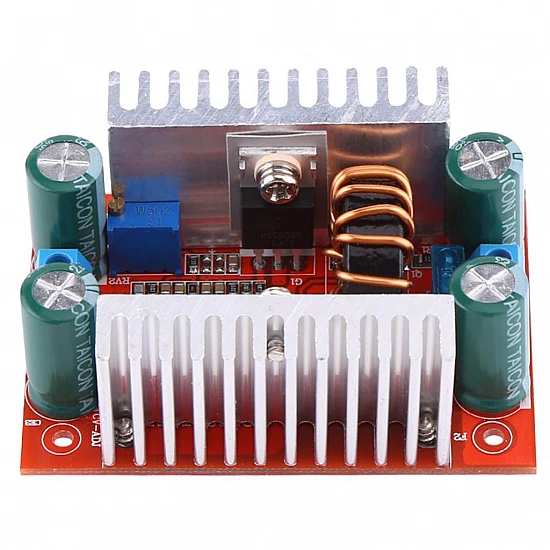

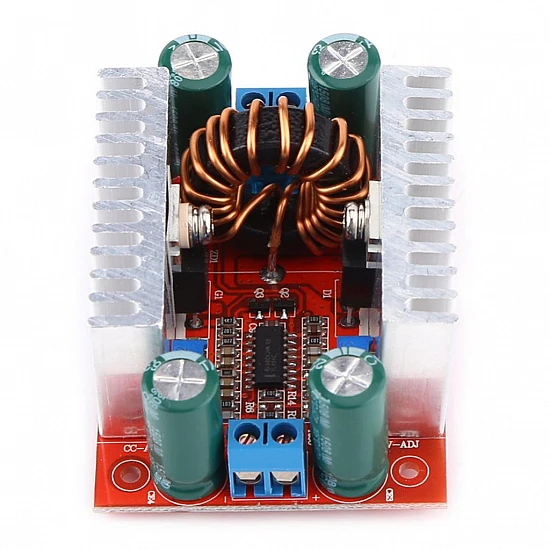

The Boost module has 2 heat sinks that could enhance heat dissipation. Wiring is convenient with these large current 15A screw terminals.

Applications:

  •  DIY a power supply, 12V input, and output  12-50V adjustable.
  •  The power supply for your electronic device, according to your system can set the output voltage value.
  •  As the car power supply for your laptop, PDA, or a variety of digital products supply.
  •  DIY a mobile notebook power supply: 12V coupled with a high-capacity lithium battery pack.
  •  Driving high-power LED lights.

Package Includes:

1 x DC-DC 400W 15A Boost Converter Step-up Module Constant Current LED Driver

Technical
Efficiency

up to 96%

Input Current

15A

Input Voltage

8.5V-50V DC

Operating Frequency

150KHz

Operating Temperature Range

-40 to 90 °C

Output Voltage

10-60V

Quiescent current

10mA

Length

67mm

Height

28mm

Width

48mm
