DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller

DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
-42 %
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹288
₹499

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-01-204
    7 or more ₹280
    30 or more ₹276
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). It is widely used in industrial production. It comes with a button to control the speed of the motor

Features:

  • Operating voltage: DC 6V-DC 90V, max. power: 1000W.
  • A PWM speed controller enables you to control the speed of DC motors smoothly.
  • This motor speed control switch can control the motor speed from between 0% -100%.
  • Support PLC control, stable performance, high efficiency, and low noise.
  • Suitable for applications like fans, etc. providing nice adjustment of motor speed.

Package Includes:

1 x DC 6V-90V 15A Motor Governor PWM Variable Speed Control Switch Controller.

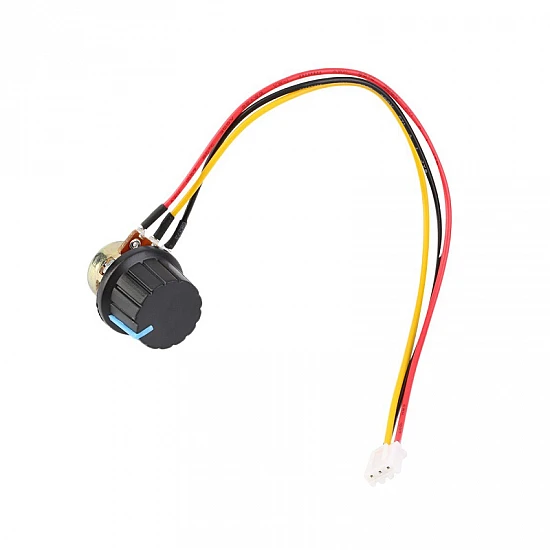

1 x Potentiometer with Connector.

Technical
Controlled Power

0.01-1000W

Maximum Current

15A
Operating Current

Max 8A
Operating Voltage

6 - 90 VDC
PWM Frequency

16KHZ

Length

60 mm
Height

30 mm
Width

63 mm
Questions1 Answers3 | Expand All
Can i get GST invoice for the order ?
Shubham Bhausaheb Modake
  • Yes, You can claim GST credit if you have a GST number. To do it you have to mention the GST number at the time of checkout. GST option appears in the Billing Address. If you are an existing customer of flyrobo then you can log in to your account ( Account → Address Book → Edit Address) and Then enter your GST number.
    FlyRobo[ 16/11/2022 ]
    Was this answer helpful?707
Log In to Add an Answer
can we control the rpms of a 100RPM High Torque Side Shaft DC Metal Geared Johnson Motor?
i want to use a high torque and low rpm motor so i am using 100RPM High Torque Side Shaft DC Metal Geared Johnson Motor for my project. in that i want to control the motors rpm as per my need. if this device can not do this work then what thing should i use or vice or versa which motor should i use which is compatible with this device. specifications of this motor is Motor Type : High Torque Side Shaft Metal Gearedbox Motor. Rated Voltage : 12V DC. Rated RPM : 100 Torque : 35Kgcm Weight : 180gm No Load Current : 800mA (Max.) Load Current : 7.5A (Max.) Shaft Diameter : 6mm (with M3 thread hole.) GearBox Diameter : 37mm Shaft Length : 30mm Motor Diameter 28.5mm
harsh
  • Yes Sir, You can control using it.
    FlyRobo[ 01/04/2022 ]
    Was this answer helpful?2
Log In to Add an Answer
Does this device works as per supply or we need a 12 volts power supply to be connected before this.
harsh

  • I did not understand your question properly.

    This module does not require an additional 12v supply to work. You only need to connect power 6 - 90 VDC to the power pin as shown in the photo. Aditional 12v power is not needed in it.

    FlyRobo[ 31/03/2022 ]
    Was this answer helpful?2
Log In to Add an Answer
Showing 1 to 1 of 1 (1 pages)
