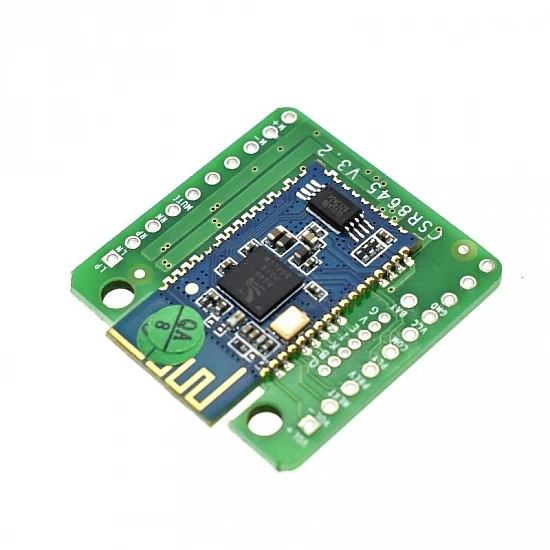

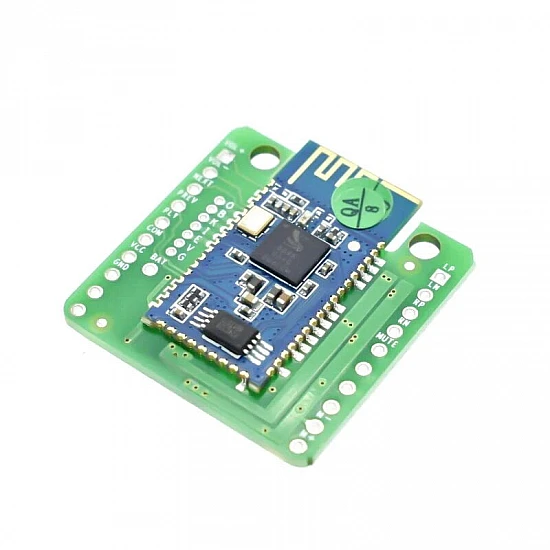

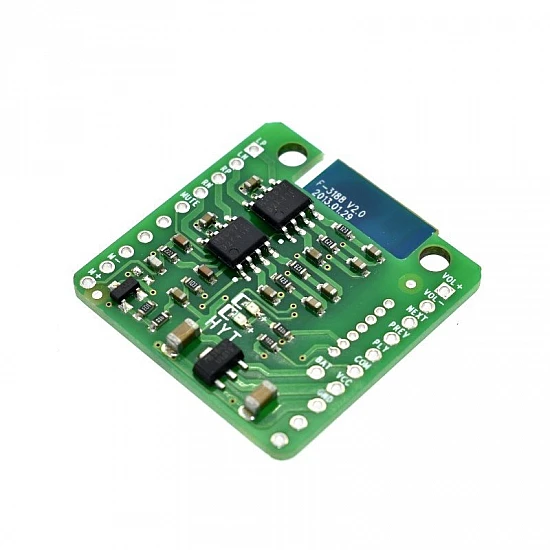

CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module

CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module

CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module
₹1,099

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹10 FlyRobo Cashback.
  • SKU: FR-01-114

This Module has a CSR8645 chip that provides high-quality sound and compatibility, and overall performance is superior. The Bluetooth module adopts the driver-less mode.

Just connect the module to the application product and you can quickly realize the wireless transmission of music and enjoy the fun of wireless music. It can connect two main Bluetooth devices at the same time.

After the module is powered on, it automatically connects to the last paired mobile phone. The second-to-last paired mobile phone needs to be manually connected. If the 6 paired devices are turned on at the same time, the last paired phone is automatically connected.

Features:

  • The board can be connected to two mobile phones.
  • Low Power Consumption
  • It comes with the call function and the default volume of the largest.
  • It can be used for many applications like Bluetooth Headset.
  • Package Includes:

1 x CSR8645 Wireless Bluetooth 4.0 Amplifier Board 5W+5W APT-X Stereo Receiver Amplifier Module.

Technical
Channels

2

Frequency Range

2.4GHz~2.480GHz

Maximum Power

5W per Channel

Operating Temperature Range

-40℃ to 85℃

Sensitivity

80dBm<0.1%BER

Transmitting Power

9dbm(Max)

Working Current

<=30mA

Working Voltage

DC 11.5V - 12.5V

stand by current

<50uA

Length

31 mm

Height

4 mm

Width

29 mm
