CNC 3D Printer Mechanical End Stop Switch

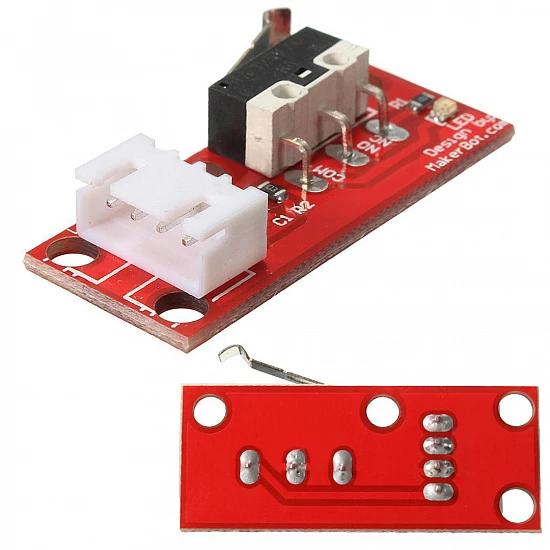

CNC 3D Printer Mechanical Endstop Switch uses a lever switch to detect when it is activated. The switch is wired up so that when activated, it pulls the signal to LOW. There is also an LED on the board that will light up when the switch is activated. It uses a standard 4 pin 100″ pitch header and accepts a standard, old-style CD-ROM audio connector cable.

The mechanical end stop is a simple solution to a simple problem. We want to be able to detect when an X/Y/Z stage has reached its minimum or maximum. Instead of messing with flags or complicated light beam interruption, we use a mechanical switch.

If we place the switch in the path of the stage, then the stage itself will simply close the switch when it moves against it. Other than properly positioning the switch, we do not need to modify the stage at all. If you’re worried about reliability, you can sleep well at night. The switches we use are rated for 1 million operations before failure. Since we only use the switches once per print, that means you’ll be able to do one million prints before having to replace the switch.

Features:

• Not easy to pull off, plug it convenient, for ease of use, plug the other side to do the one, you can use the direct plug.
• Quality switching elements.
• Customized high-quality connection wires using 22AWG copper wire with ratings of current 2A, 300V voltage.
• An insulating layer over a wide range of temperatures, up to 80 degrees.

Package Includes:

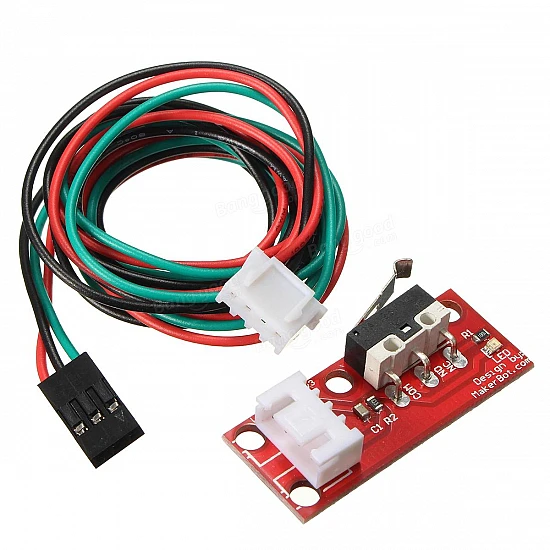

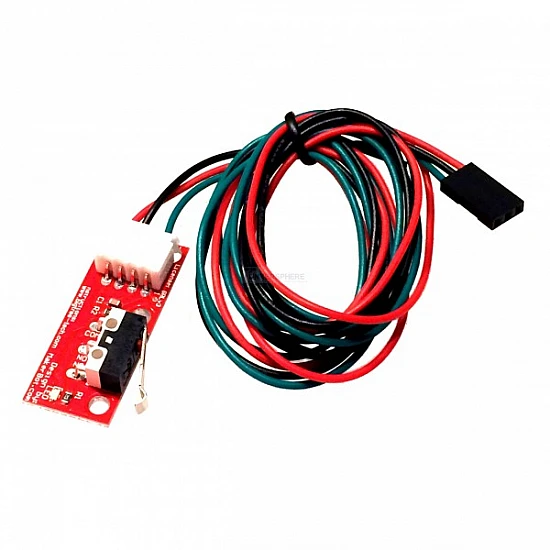

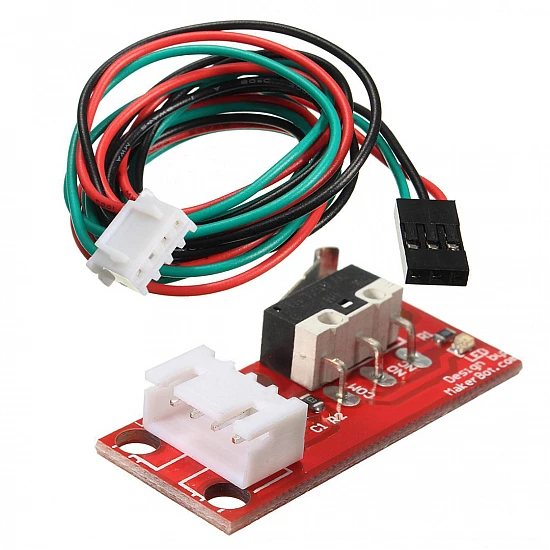

1 x CNC 3D Printer Mechanical End stop Switch.

1 x 3 Pins cable.
