2-Bit Bidirectional Voltage Level Translator I2C IIC Level Module CJMCU-0102 TXS0102.This two-bit non-inverting translator can be used to provide digital switching compatibility between mixed-voltage systems because it is a bidirectional voltage-level translator. The device uses two independent, programmable power supply rails, with the A ports supporting operating voltages between 1.65 V and 3.6 V while tracking the VCCASupply and the B ports supporting operating voltages between 2.3 V and 5.5 V while tracking the VCCBSupply. This device supports both lower and higher logic signal levels and offers bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
All I/Os are put into a high-impedance condition when the output-enable (OE) input is low, which considerably lowers the power-supply quiescent current usage.

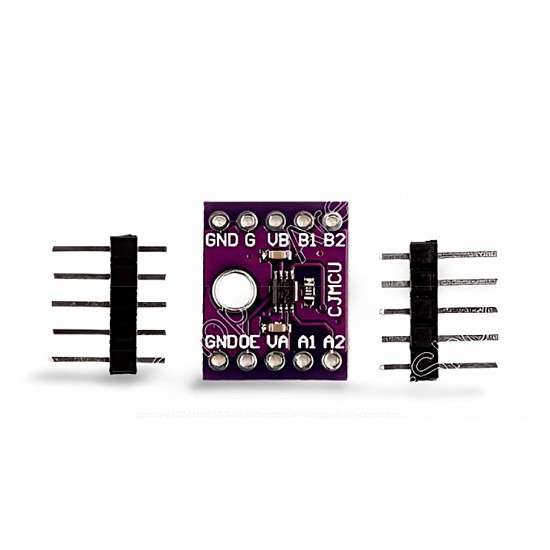

1 X CJMCU-0102 2 Bit Bidirectional Voltage Level Converter I2C Switch
2 X Header Set
