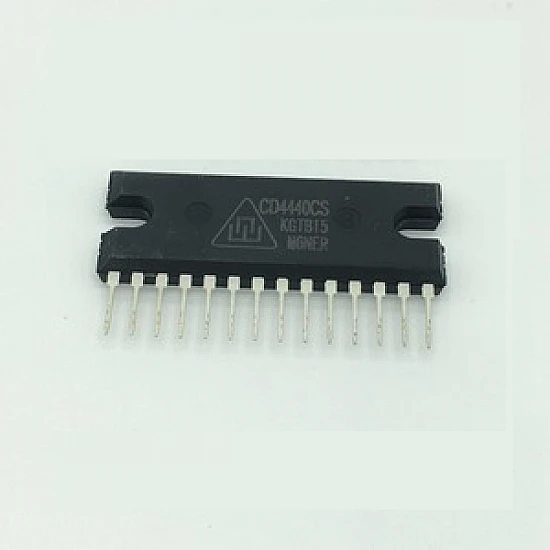

CD4440 / LA4440 2 Channel 6W Audio amplifier IC

CD4440 / LA4440 2 Channel 6W Audio amplifier IC
Out Of Stock
CD4440 / LA4440 2 Channel 6W Audio amplifier IC
₹50

(inc GST)

  • Stock: Out Of Stock
  • With this product you will receive ₹1 FlyRobo Cashback.
  • SKU: FR-05-680
7 Day Return
Get 7 Day Replacement/Refund on this product
Free shipping
Get free shipping on this product. Buy above ₹ 999 and get free shipping.
COD Available
Get this product with Cash at the time of Delivery
Support
Get best after-sale support From our Technical team with different Tutorials

CD4440 is a Stereotype audio amplifier IC with an inbuilt dual channel that enables it for stereo and bridge amplification applications. It gives 6W output in dual mode and 19W in bridge mode. This IC has inbuilt over power protection, small residual noise, good ripple rejection and special feature of pin-to-pin protection.


Specification

Supply voltage: 13.2V

Maximum operating voltage: 18V

Surge supply voltage: 50V

Allowable power dissipation: 15W

Output power

Dual-mode: 6W

Bridge mode: 19W

Ripple rejection ratio: 46dB

Quiescent current: 100 to 200mA

Operating temperature: -20°C to 75°C

Features

Inbuilt over voltage, surge voltage, thermal and pin-to-pin protection

Good channel separation of 44 to 55 dB

Good ripple rejection

Small residual noise

Small distortion over low to high frequency

Package Includes:

1 x CD4440 / LA4440 2 Channel 6W Audio amplifier IC
