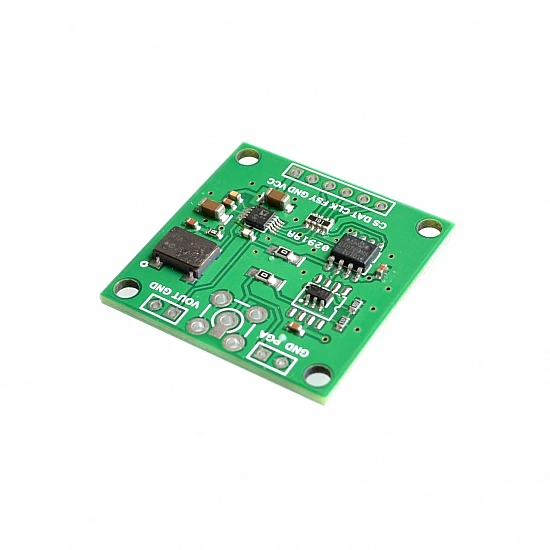

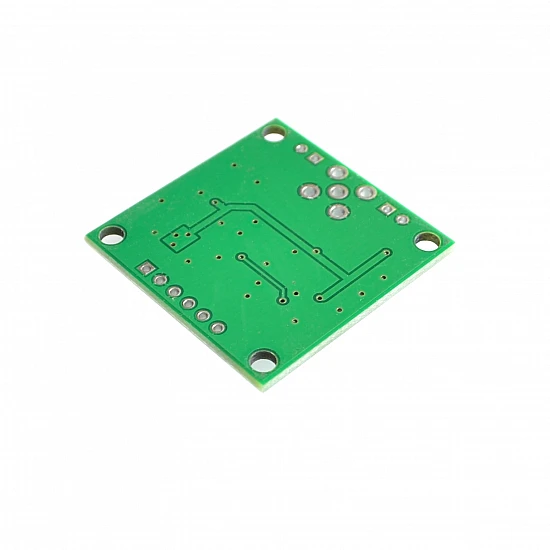

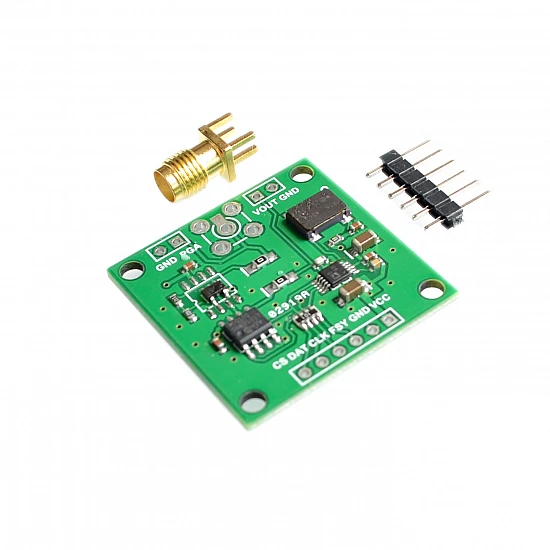

AD9833 DDS Signal Generator Module

AD9833 DDS Signal Generator Module
AD9833 DDS Signal Generator Module
AD9833 DDS Signal Generator Module
-26 % Out Of Stock
AD9833 DDS Signal Generator Module
AD9833 DDS Signal Generator Module
AD9833 DDS Signal Generator Module
AD9833 DDS Signal Generator Module
₹625
₹849

(inc GST)

  • Stock: Out Of Stock
  • ₹6 FlyRobo Cashback.
  • SKU: FR-01-149
    5 or more ₹608
    15 or more ₹598
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

AD9833 DDS Signal Generator Module is a programmable waveform generator capable of generating a frequency 0-12.5MHZ sine, triangle, square wave signal. The frequency and phase of the output signal are programmable so that the frequency and phase of the output signal are easily adjusted.

Features:

  • onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
  • On-board high-speed amplifiers 300M and also has low-pass filtering.
  • Distribution STM32, STM8, STC, and other common microcontroller debugged programs and relevant information.
  • Frequency excitation/waveform generation. Liquid, gas flow measurement.
  • Sensing applications – approximation, sports, defect detection.

Package Includes:

 1 x AD9833 DDS Signal Generator Module

Technical
Operating Temperature Range

-40°C to 105°C

Working Voltage

2.3 - 5.5V

Length

31 mm

Height

2 mm

Width

31 mm
