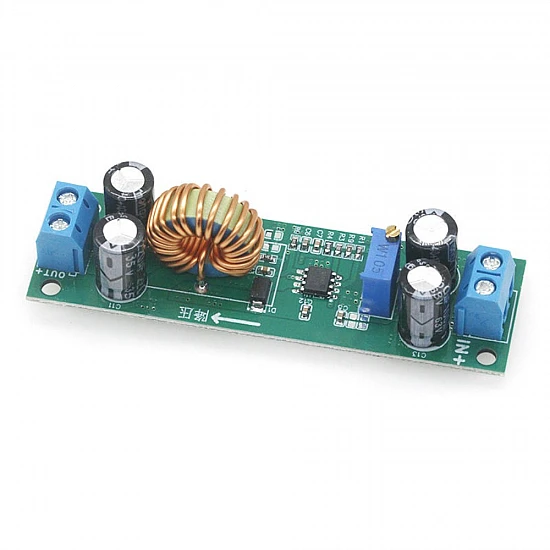

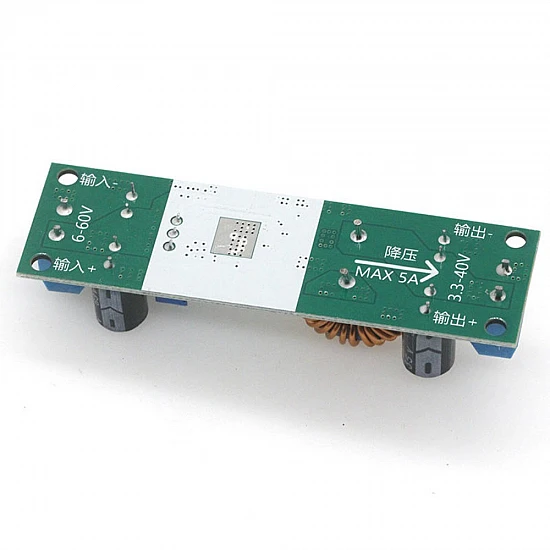

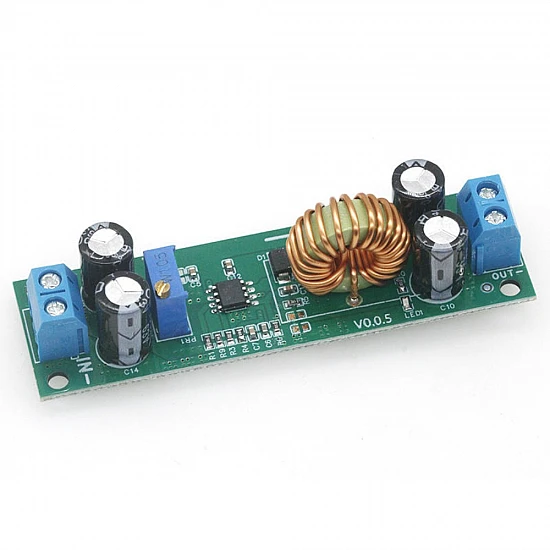

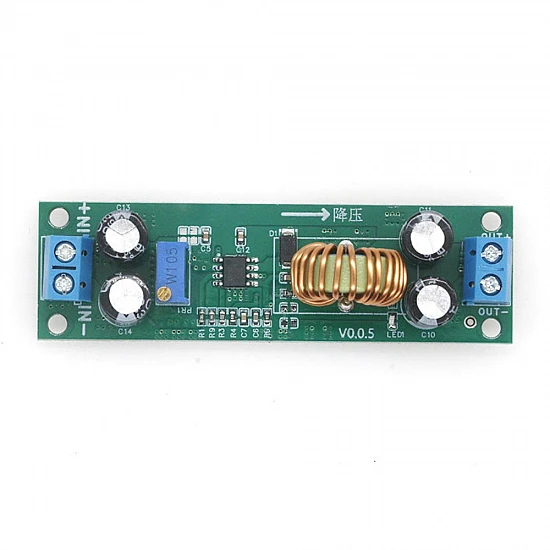

60V/48V/36V/24V to 19V/12V/9V/5V/3V Adjustable Synchronous Buck Converter Module

The 60V Adjustable Synchronous Buck Converter Module is a heavy-duty voltage step-down regulator designed for high-efficiency power conversion. Utilizing synchronous rectification technology, this module minimizes heat generation while reliably stepping down high-voltage DC inputs (ranging from 24V to 60V) to stable, lower-voltage outputs (such as 3V, 5V, 9V, 12V, or 19V). It is the perfect power management solution for environments with fluctuating or exceptionally high supply voltages.

This versatile DC-DC converter is ideal for automotive applications, e-bike battery stepping, solar power arrays, and custom industrial hardware. Whether you need a stable 5V rail for your ESP32 and Arduino boards, or a clean 12V supply for motors and LED arrays, this adjustable buck converter ensures your microcontrollers and sensitive electronics are protected. Equipped with robust screw terminals and high-capacitance filtering, it guarantees a clean output for your most demanding projects.

Features:

• Wide Input Range: Safely accepts high DC input voltages from 24V up to 60V.
• Adjustable Output: Precision potentiometer allows tuning the output voltage down to 3V, 5V, 9V, 12V, or 19V to suit your load requirements.
• Synchronous Rectification: Highly efficient circuit design significantly reduces power loss and operating temperature during heavy loads.
• Heavy-Duty Components: Features a high-current toroidal inductor and large filtering capacitors for low output ripple.
• Easy Wiring: Input and output screw terminals allow for fast, secure wire connections without the need for soldering.

Package Includes:

1 x 60V Adjustable Synchronous Buck Converter Module
