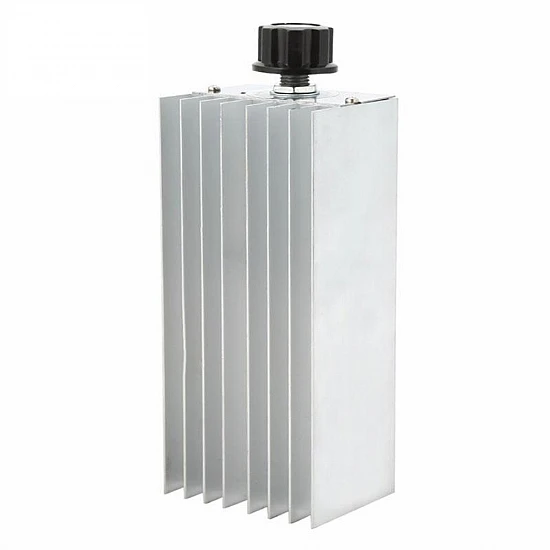

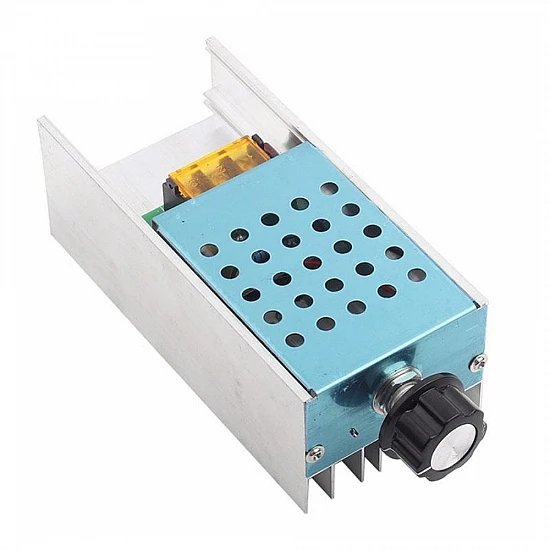

6000W SCR AC Voltage Regulator Dimmer Speed Controller

The 6000W SCR AC Voltage Regulator is a high-power electronic solution designed for precise control over AC voltage, speed, temperature, and light brightness. Equipped with an imported high-power Silicon Controlled Rectifier (SCR), this module easily handles heavy-duty resistive loads up to 6000W. It features a robust aluminum protective housing and an integrated heavy-duty heatsink that ensures efficient heat dissipation, making it highly reliable for continuous industrial and DIY applications.

This versatile regulator is perfect for controlling the speed of AC brush motors, adjusting the temperature of heating elements (such as electric water heaters and furnaces), and dimming high-power incandescent lamps or soldering irons. It interfaces seamlessly with standard single-phase AC power lines in India, providing a smooth, step-less adjustment range from AC 10V up to the input voltage level via its rugged rotary potentiometer knob.

Features:

• High Power Capacity: Supports resistive loads up to 6000W, ideal for heavy-duty appliances.
• Imported High-Quality SCR: Utilizes a premium thyristor for stable voltage regulation and long service life.
• Robust Aluminum Housing: Fully enclosed metal shell protects internal circuitry and enhances user safety.
• Excellent Heat Dissipation: Large integrated aluminum heatsink prevents overheating during high-current operations.
• Step-less Adjustment: Smooth rotary knob allows precise tuning of output voltage from AC 10V to 220V.

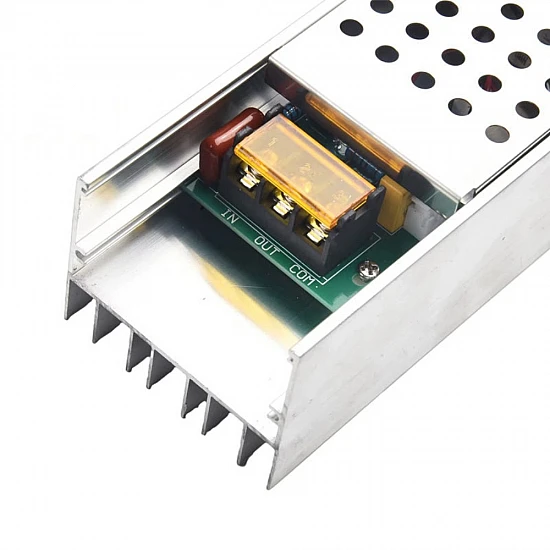

• Safe Terminal Connections: Features heavy-duty screw terminals with a protective cover for secure wiring.

Package Includes:

1 x 6000W SCR AC Voltage Regulator with Housing
