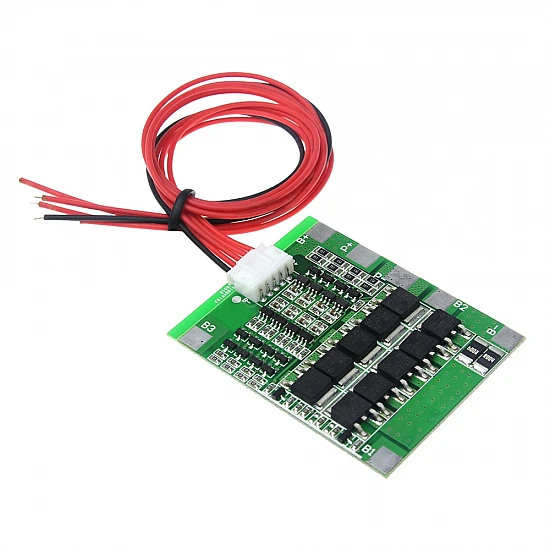

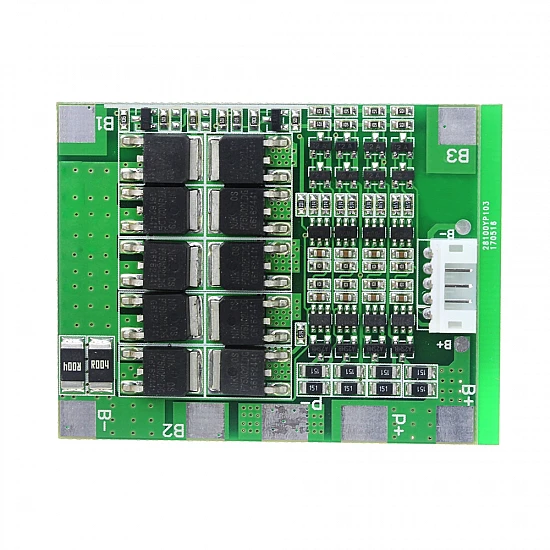

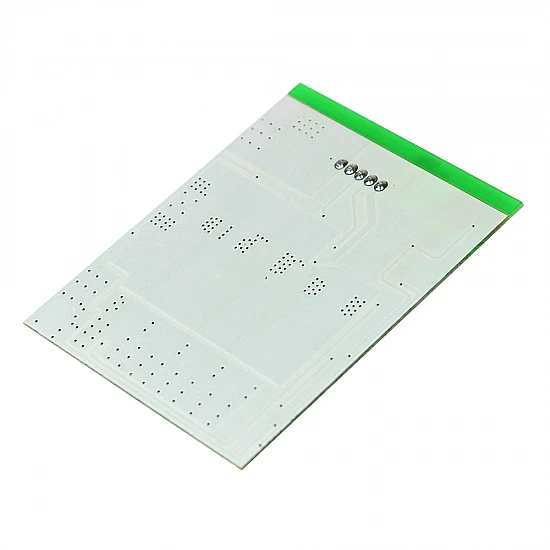

4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable

4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable
4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable
4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable
-43 %
4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable
4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable
4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable
4S 30A 18650 BMS Lithium Battery Protection Board 14.8V 16V with Cable
0
Based on 0 reviews. - Write a review
 / Ask a Question
₹205
₹359

(inc GST)

  • Stock: In Stock
  • ₹2 FlyRobo Cashback.
  • SKU: FR-07-431
    7 or more ₹194
    30 or more ₹188
FlyRobo FlyRobo
Add to Cart
Buy Now
Add to Wish List
7 Day Replacement
Replacement available on this product
Free shipping
Get free shipping above ₹ 499
COD Available
Pay Cash at the time of Delivery
Support
Get After-sale Technical Support

BMS stands for the battery management system. This is a BMS with a 30A current and14.8V 16V voltage rating to charge 4 cells of Li-ion cells. The module comes with overcharge protection, over-discharge protection, short circuit, and over current protection features.

A Balance Board for Drill Motor Lipo cell module comes with recovery function-AUTO Recovery and Integrated 10 low load resistance MOS tube.

Features:

  • Four series of lithium battery protection board
  • Overcharge protection,
  • Over-discharge protection function,
  • Short circuit protection function,
  • Overcurrent protection function.

Package Includes:

1 x 4S 30A 18650 Lithium Battery Protection Board

1 x Battery Connecting Cable

Technical
Balanced current

60mA
Operating Temperature Range

-30°C to 80°C

Over current

60A
Over Current Detection Delay Time

500 ms
Over-discharge detection voltage (V)

2.55±0.08 V

Overcharge detection voltage (V)

3.9+ 0.05 V

Product Type

BMS charger module

Working Current

30A
Dimensions (LxWxH)

56mm x 46mm x 3.5mm
