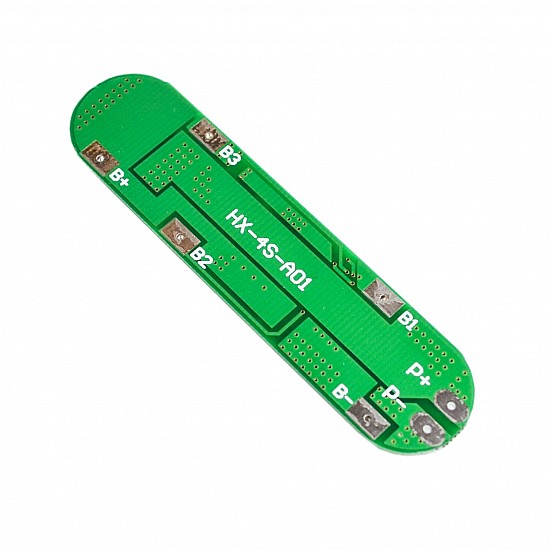

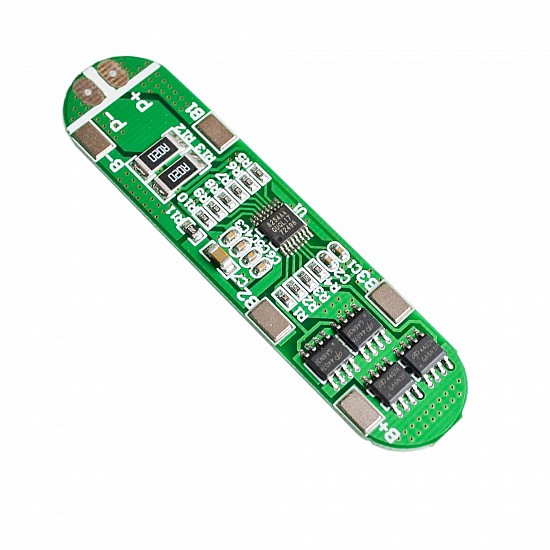

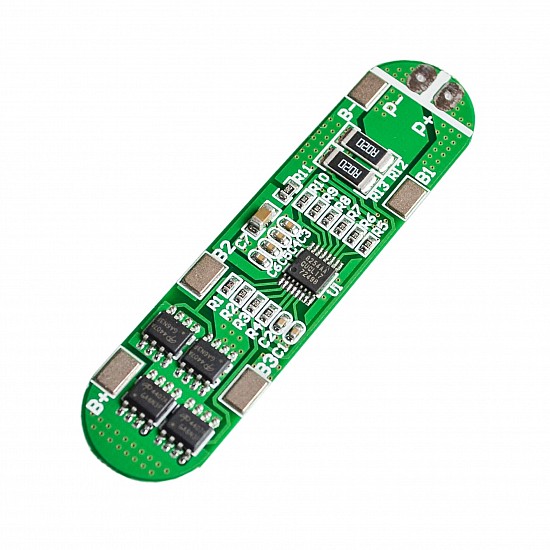

4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board

4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board
4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board
4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board
4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board
4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board
4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board

4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board
₹230

(inc GST)

  • Stock: In Stock
  • With this product you will receive ₹2 FlyRobo Cashback.
  • SKU: FR-07-447

BMS stands for the Battery Management System. This is a BMS with 10A Current and a 16.8V voltage rating to charge 4 cells of Li-ion cells. The module comes with overcharge protection, over-discharge protection, short circuit, and over current protection features.

Features:

  • Model: HX-4S-A01
  • Suitable for Four series of lithium battery protection board
  • Adopt a precision integrated circuit for fast and safe charging.
  • Overcharge protection,
  • Over-discharge protection function,
  • Short circuit protection function,
  • Overcurrent protection function.

Package Includes:

1 x 4S 10A 16.8V 18650 BMS Li-ion Battery Protection Board

Technical
Model

HX-4S-A01

Battery

4 Cell

Charging Voltage

16.8V - 17V

Internal Resistance

less than 100mΩ

Operating Temperature Range

-40°C to 50°C

Quiescent current

less than 30uA

Upper working current

8 to 10A

Length

72 mm

Height

3 mm

Width

17.9 mm
