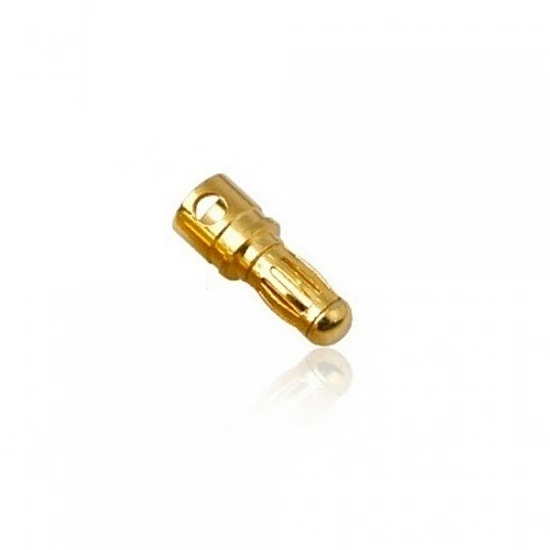

The 3.5mm Gold Bullet Male Banana Connector Plug is a high-quality connector designed for high-current applications, particularly in the RC hobby field. It is most commonly used to create reliable, low-resistance connections between a brushless motor and an Electronic Speed Controller (ESC), or for battery pack connections. The gold plating ensures excellent conductivity and prevents oxidation, providing the best possible electric flow for your high-performance setup. This male plug features a sprung or cross-slotted design to ensure a tight and secure fit with its female counterpart, minimizing power loss and preventing accidental disconnections during use.
Features:
- Connector Type: Male 3.5mm Bullet / Banana Plug.
- High Conductivity: Gold-plated brass/copper construction for minimal resistance and maximum power transfer.
- Secure Connection: Often features a cross-slotted (sprung) design for a firm, reliable fit.
- High Current Handling: Capable of handling continuous currents typically in the 30A-60A range.
- Primary Use: Ideal for connecting brushless motors to ESCs and for RC LiPo battery connections.
- Easy Installation: Designed to be easily soldered to wires (e.g., 12AWG to 16AWG).
- Durable: Resistant to corrosion and designed for repeated connections.
Package Includes:
1 x 3.5mm Gold Bullet Male Banana Connector Plug
| Technical | |
| Connector Type | Bullet / Banana Plug |
| current rating | Up to 60A (continuous) |
| Diameter | 3.5mm |
| Gender | Male |
| Plating | Gold |
| Weight | Approx. 2g |
| Material | Brass / Copper |
| Length | Approx. 12mm |
