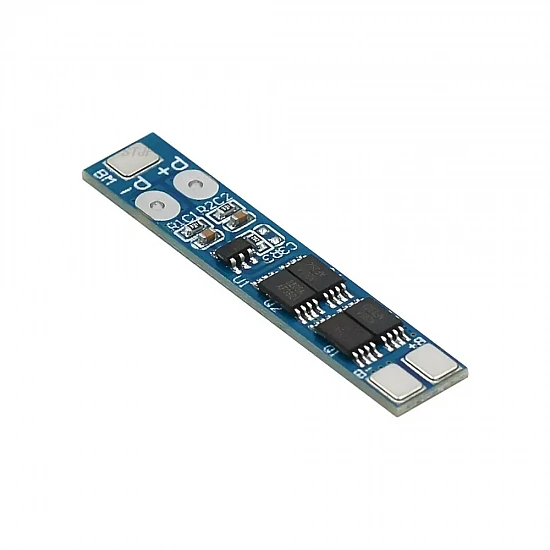

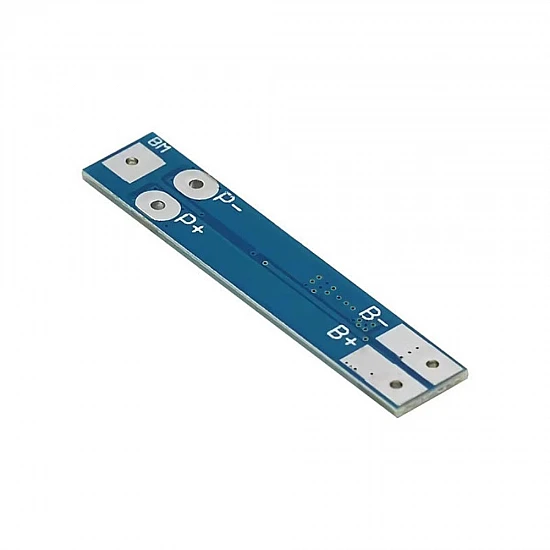

2S 8A 7.4V/8.4V 18650 Lithium Battery Protection Board BMS

The 2S 8A 7.4V/8.4V 18650 Lithium Battery Protection Board (BMS) is a compact, high-performance module designed to safeguard your 2-cell lithium-ion or lithium-polymer battery packs. Operating safely with up to 8A continuous current, this HX-2S-A10 module ensures your batteries are protected from catastrophic failure by constantly monitoring voltage and current levels, providing an essential safety layer for your custom power solutions.

Ideal for DIY electronics, robotics, and RC vehicles, this BMS board easily integrates into custom power banks or portable IoT setups. It provides robust protection against overcharge, over-discharge, and short circuits, ensuring the longevity and health of your 18650 cells. If you need to build reliable power packs for your ESP32, Arduino, or motorized projects, buy online in India and ensure your batteries remain safe under heavy loads.

Features:

• Continuous Protection: Supports a continuous working current of up to 8A, with a peak instantaneous current of 16A.
• Overcharge Safety: Automatically cuts off charging if the cell voltage exceeds 4.28V (±0.05V).
• Over-discharge Safety: Prevents deep discharge damage by cutting power when voltage drops to 2.9V (±0.05V).
• Short Circuit Protection: Features reliable, delayed self-recovering short circuit defense to prevent battery damage.
• Low Power Draw: Highly efficient design with a quiescent current of less than 10uA.
• Compact Form Factor: Small PCB size allows for easy installation directly onto 18650 battery packs.

Package Includes:

1 x 2S 8A 7.4V/8.4V 18650 Lithium Battery Protection Board
