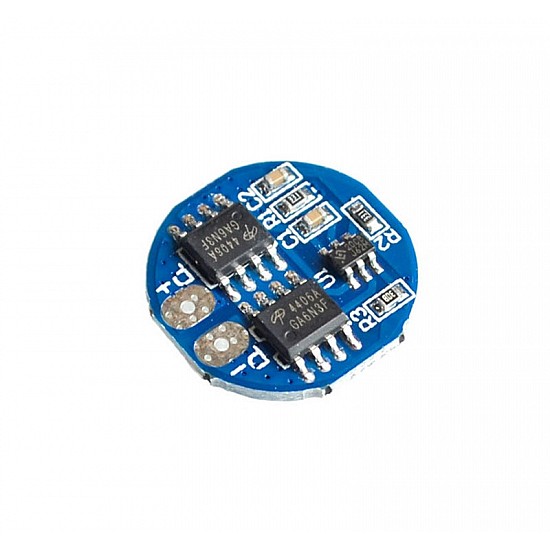

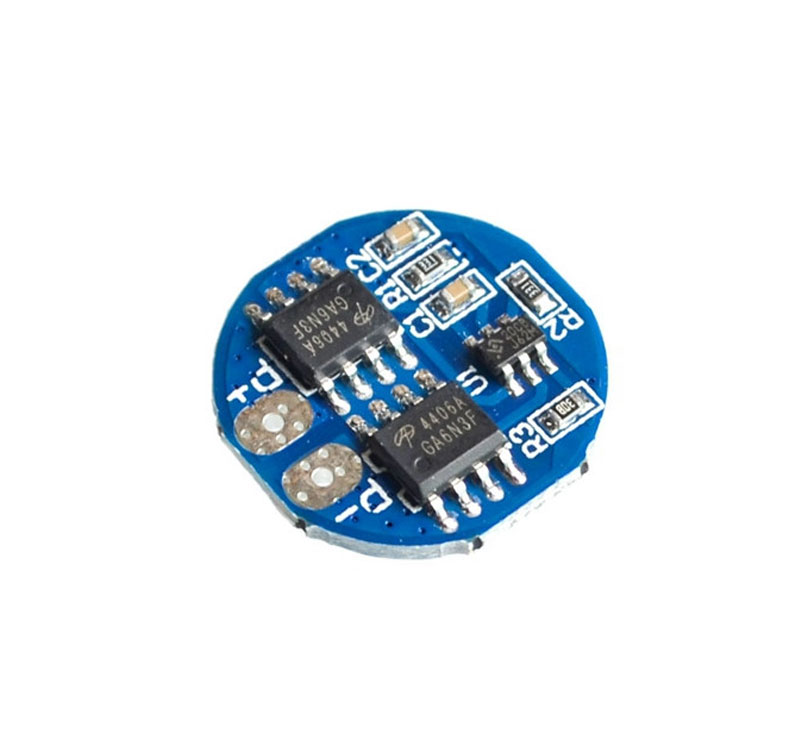

18650 2S 5A Li-ion Battery Protection Board BMS HX-2S-A2

Lithium-Ion charge protection circuit comes with over-charge, over-discharge, over-current and short circuit protection. MOS transistor can control the battery charge and discharge, Built-in three-stage over-current detection circuit, for a variety of various shapes 3.7 V lithium-Ion batteries.hx-2s-a2 is highly accurate voltage detection circuit and provides low standby current consumption.hx-2s-a2 is Small size, suitable for many requirements of high integration, low cost.

Features:

• Charging Voltage Range: 4.25-4.35V±0.05V
• Discharge Voltage Range: 2.5-3V±0.05V
• Maximum Working Current: 5A
• Limit Instantaneous: 7A
• Charging Voltage: 8.4V-9V

Bms solder instructions:

• B +: Has connected to the accumulator a positive
• B-: Battery is connected negative
• MB: Connect battery 1 to the connection point in front of battery 2
• P + : C Harge / discharge side positive (total charge / discharge side)
• P- : Connection / discharge of the terminal minus (charging / discharging side is divided)

Package included:

1 x2S 5A Li-ion Battery Protection Board BMS HX-2S-A2
