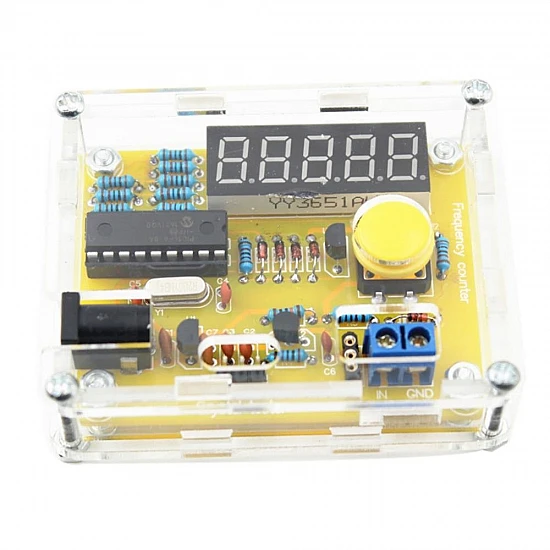

1Hz-50MHz DIY Frequency Meter Kit with Crystal Oscillator Tester

The 1Hz-50MHz DIY Frequency Meter Kit is a versatile and educational tool designed for electronics enthusiasts, students, and engineers. This comprehensive soldering kit allows you to build a highly accurate frequency counter capable of measuring signals from 1Hz up to 50MHz. Featuring a dedicated crystal oscillator measurement function, it is an essential diagnostic tool for testing standard quartz crystals and verifying clock signals in your circuits. With its bright 5-digit 7-segment LED display, you get crisp, real-time readouts of your electronic measurements.

Perfect for DIY electronics troubleshooting, radio frequency (RF) testing, and microcontroller clock debugging, this frequency meter module bridges the gap between theoretical learning and practical application. It is highly compatible with Arduino-based projects, custom PCBs, and basic radio circuits where signal timing is critical. The kit comes complete with a transparent acrylic housing that not only protects the bare circuit board but also gives your finished project a professional, polished look. Buy online in India to practice your soldering skills while building a genuinely useful piece of test equipment.

Features:

• Wide Measurement Range: Accurately measures signal frequencies from 1Hz to 50MHz.
• Crystal Tester: Dedicated onboard socket for testing the functionality and frequency of common quartz crystal oscillators.
• Clear Display: Features a bright 5-digit 7-segment LED display for easy and precise reading of measurements.
• DIY Educational Kit: Excellent for students and makers to practice through-hole soldering and understand basic measurement circuitry.
• Protective Housing: Includes a custom-fit, transparent acrylic case with mounting standoffs for protection and aesthetics.
• Auto Range Switching: Automatically shifts the decimal point for precise readouts across different frequency bands.
• Standard Power Input: Easily powered via a standard DC barrel jack (typically supports 5V to 9V input).

Package Includes:

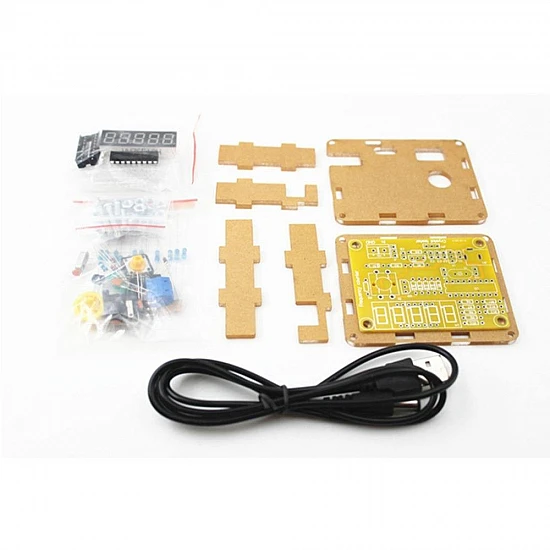

1 set kit x 1Hz-50MHz DIY Frequency Meter Kit with Crystal Oscillator Tester (non-soldered)
