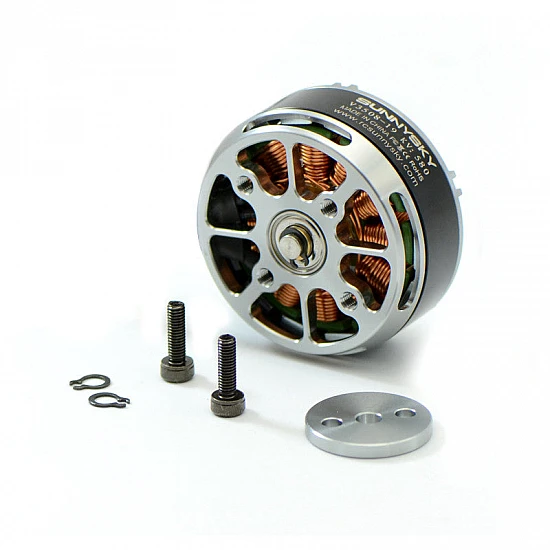

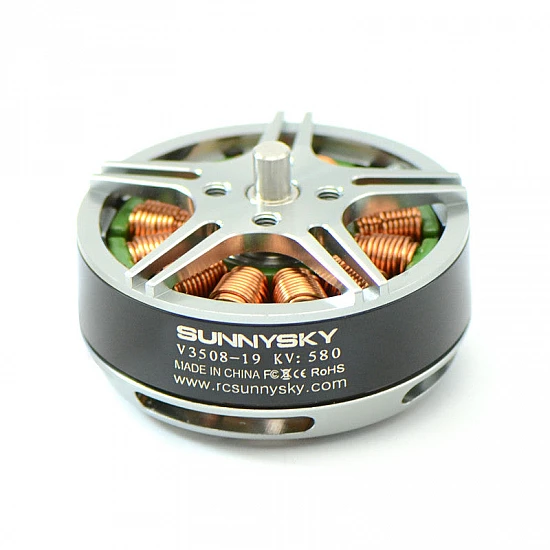

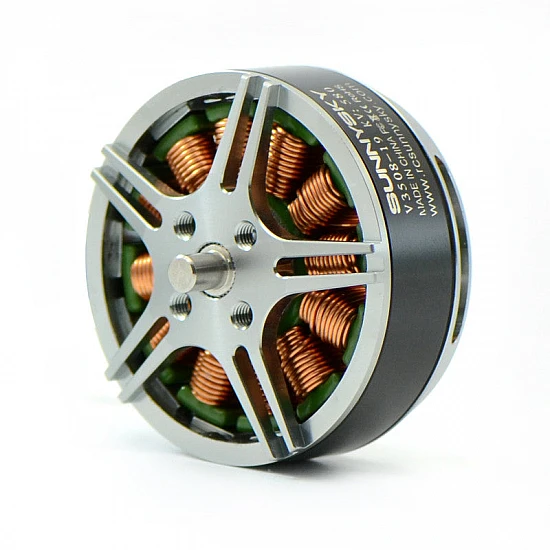

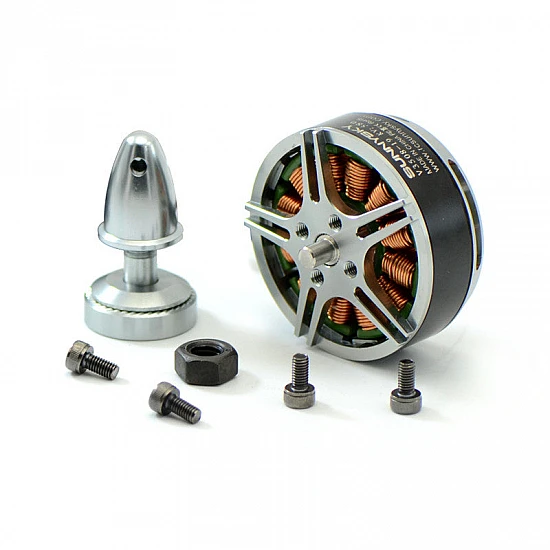

Name: SunnySky V3508 High Efficiency Brushless Motors (380kv, 580kv, 700kv)
Brand: SunnySky
SKU: FR-02-931
Price: 5630.00 INR
Availability: InStock

SunnySky V3508 High Efficiency Brushless Motors (380kv, 580kv, 700kv)

Pre-Order -44 %

SunnySky V3508 High Efficiency Brushless Motors (380kv, 580kv, 700kv)

This Product is on Pre-Order Only.

After placing an order It will take 15-30 days approx to be delivered. For this product Cash on Delivery service is not available.

Based on 0 reviews. - Write a review

/ Ask a Question

₹5,630

₹10,000

(inc GST)

Stock: In Stock
₹56 FlyRobo Cashback.
SKU: FR-02-931

3 or more ₹5,474

10 or more ₹5,387

SunnySky

Available Options

Motor KV Rating

Qty

Add to Cart

Buy Now

Add to Wish List

Related Products
From Same Brand

Quickview

10cm 2Pin JST Male Female Plug Connector Plug

₹39

Add to Cart Add to Wish List

Quickview

Pixhawk PX4 Autopilot 2.4.8 32 Bit Flight Controller kit With Telemetry and GPS

₹17,999

Add to Cart Add to Wish List

Quickview

SunnySky Motor X2212-9 1250kv brushless motor

₹999

Add to Cart Add to Wish List

Quickview

SunnySky X2212 CCW 980KV Brushless Motor for Drone

₹1,999

Add to Cart Add to Wish List

Quickview

SunnySky X2212 CW 980KV Brushless Motor for Drone

₹1,577 ₹1,999

Add to Cart Add to Wish List

The Sunnysky V series motors have been specifically designed to power long-endurance multirotor aircraft. The entire series has been engineered with a focus on high efficiency, stability, lightweight construction, and consistent performance. These flat V series motors are tailored to suit long flight time multirotors, delivering sufficient torque at low RPM and achieving peak efficiency during operation.

Sunnysky has utilized its patented Stepped and knurled design across the entire V series, ensuring that the motors remain securely fastened and reducing the chances of malfunction or unstable power output. Furthermore, each motor in the series features authentic Japanese EZO bearings, which help to keep the flight quiet and stable.

Despite their strength and reliability, the caps of the V motors have been expertly hollow-cut to minimize weight. This enables the motors to achieve an optimal thrust-to-weight ratio, thereby increasing flight time.

To guarantee optimal performance, every V series motor is tested using SunnySky's rigorous QC protocols. Each motor is dynamically balanced to the highest standard, and axial and radial runouts are meticulously tested in accordance with its design. The performance of each motor is controlled to within 3%, ensuring precise and consistent power output for professional applications.

Compatable ESC: BLHeli LittleBee 30A ESC (DSHOT) 2-6SLipo

Package content:

1 x Motor With accessory

Technical
Max Thrust	Up to 2300g
Propeller	12-15 inch
Rating	380kv, 580kv, 700kv
Weight	97g

Be the first to ask a question.

Stator Diameter	35mm	Rotor Diameter	41.8mm
Stator Thickness	8mm	Body Length	20mm
No.of Stator Slots	12	Max Lipo Cell	4-6S
No.of Rotor Poles	14	ESC	30A
Motor Kv	350	Recommended Prop(inch)	EOLO CN125/CN135/CN15*5.5
No-load current	0.3A/10V	Recommended single take-off Weight	≤800g
Motor Resistance	257mΩ
Max Continuous Current	16A/30s
Max Continuous Power	400W
Weight	97g

Prop(inch)	Voltage(V)	RPM	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
EOLO CN12*5	22.2	2910	0.6	200	13	15.02	75℃
		3567	1	300	22	13.51
		4050	1.6	400	36	11.26
		4457	2.1	500	47	10.73
		4851	2.7	600	60	10.01
		5159	3.4	700	75	9.27
		5567	4.2	800	93	8.58
		5855	4.9	900	109	8.27
		6134	5.7	1000	127	7.90
		6571	7.1	1157	158	7.34
	25	2902	0.5	200	13	16.00
		3560	0.9	300	23	13.33
		4030	1.4	400	35	11.43
		4467	1.9	500	48	10.53
		4850	2.4	600	60	10.00
		5153	3	700	75	9.33
		5554	3.7	800	93	8.65
		5840	4.4	900	110	8.18
		6191	5.1	1000	128	7.84
		6692	6.7	1200	168	7.16
		7235	8.5	1395	213	6.56
EOLO CN13*5	22.2	2435	0.5	200	11	18.02	83℃
		2961	0.9	300	20	15.02
		3413	1.4	400	31	12.87
		3756	1.9	500	42	11.85
		4154	2.5	600	56	10.81
		4468	3.2	700	71	9.85
		4736	3.8	800	84	9.48
		5000	4.6	900	102	8.81
		5258	5.3	1000	118	8.50
		5709	7.15	1200	159	7.56
		6180	9.1	1420	202	7.03
	25	2465	0.4	200	10	20.00
		2999	0.8	300	20	15.00
		3423	1.2	400	30	13.33
		3760	1.7	500	43	11.76
		4159	2.3	600	58	10.43
		4446	2.8	700	70	10.00
		4796	3.4	800	85	9.41
		4996	4.1	900	103	8.78
		5294	4.8	1000	120	8.33
		5795	6.4	1200	160	7.50
		6148	8.2	1400	205	6.83
		6753	11	1700	275	6.18
EOLO CN15*5.5	22.2	1964	0.4	200	9	22.52	1min 115℃
		2357	0.8	300	18	16.89
		2712	1.2	400	27	15.02
		2970	1.7	500	38	13.25
		3284	2.3	600	51	11.75
		3510	2.9	700	64	10.87
		3713	3.5	800	78	10.30
		3999	4.3	900	95	9.43
		4187	5	1000	111	9.01
		4539	6.8	1200	151	7.95
		4853	8.7	1400	193	7.25
		5200	11	1600	244	6.55
		5463	13.4	1840	297	6.19
	25	1965	0.4	200	10	20.00
		2359	0.7	300	18	17.14
		2722	1.1	400	28	14.55
		2969	1.5	500	38	13.33
		3284	2	600	50	12.00
		3540	2.6	700	65	10.77
		3703	3.2	800	80	10.00
		3969	3.8	900	95	9.47
		4190	4.5	1000	113	8.89
		4524	6	1200	150	8.00
		4852	7.7	1400	193	7.27
		5157	9.85	1600	246	6.50
		5496	12.3	1800	308	5.85
		5962	15.8	2150	395	5.44

Stator Diameter	35mm	Rotor Diameter	41.8mm
Stator Thickness	8mm	Body Length	20mm
No.of Stator Slots	12	Max Lipo Cell	4S
No.of Rotor Poles	14	ESC	30A
Motor Kv	580	Recommended Prop(inch)	EOLO CN114.5/CN125/CN135/CN155.5
No-load current	0.6A/10V	Recommended single take-off Weight	≤700g
Motor Resistance	125mΩ
Max Continuous Current	25A/30s
Max Continuous Power	400W
Weight	97g

Prop(inch)	Voltage(V)	RPM	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
EOLO CN11*4.5	14.8	3318	0.9	200	13	15.02	45℃
		3915	1.6	300	24	12.67
		4439	2.4	400	36	11.26
		5039	3.3	500	49	10.24
		5530	4.3	600	64	9.43
		5900	5.3	700	78	8.92
		6227	6.5	800	96	8.32
		6708	7.8	900	115	7.80
		7075	9.1	1010	135	7.50
	16	3262	0.9	200	14	13.89
		3889	1.5	300	24	12.50
		4546	2.3	400	37	10.87
		5011	3.1	500	50	10.08
		5578	4	600	64	9.38
		6000	5.1	700	82	8.58
		6317	6.2	800	99	8.06
		6776	7.2	900	115	7.81
		7046	8.6	1000	138	7.27
		7528	10.3	1150	165	6.98
EOLO CN12*5	14.8	2670	1	200	15	13.51	55℃
		3210	1.7	300	25	11.92
		3648	2.5	400	37	10.81
		3980	3.4	500	50	9.94
		4320	4.4	600	65	9.21
		4640	5.4	700	80	8.76
		4870	6.6	800	98	8.19
		5160	7.9	900	117	7.70
		5427	9.1	1000	135	7.43
		5830	11.9	1190	176	6.76
	16	2675	0.9	200	14	13.89
		3217	1.6	300	26	11.72
		3640	2.3	400	37	10.87
		3985	3.2	500	51	9.77
		4310	4	600	64	9.38
		4630	5.1	700	82	8.58
		4860	6.2	800	99	8.06
		5150	7.4	900	118	7.60
		5435	8.6	1000	138	7.27
		5830	13.4	1350	214	6.30
EOLO CN13*5	14.8	2307	0.9	200	13	15.02	65℃ 3min
		2969	1.5	300	22	13.51
		3344	2.3	400	34	11.75
		3680	3.1	500	46	10.90
		4024	4	600	59	10.14
		4359	5.1	700	75	9.27
		4618	6.2	800	92	8.72
		4918	7.3	900	108	8.33
		5236	8.7	1000	129	7.77
		5619	11.5	1200	170	7.05
		6069	15.1	1430	223	6.40
	16	2450	0.8	200	13	15.63
		2970	1.4	300	22	13.39
		3355	2.1	400	34	11.90
		3807	2.9	500	46	10.78
		4123	3.8	600	61	9.87
		4398	4.7	700	75	9.31
		4747	5.8	800	93	8.62
		4994	6.8	900	109	8.27
		5230	8.1	1000	130	7.72
		5709	10.7	1200	171	7.01
		6205	13.7	1400	219	6.39
		6536	16.9	1616	270	5.98
EOLO CN15*5.5	14.8	1928	0.7	200	10	19.31	104℃ 1min20s
		2385	1.3	300	19	15.59
		2649	2	400	30	13.51
		2956	2.8	500	41	12.07
		3221	3.7	600	55	10.96
		3450	4.7	700	70	10.06
		3710	5.7	800	84	9.48
		3884	6.9	900	102	8.81
		4081	8.2	1000	121	8.24
		4406	11.1	1200	164	7.30
		4784	14.5	1400	215	6.52
		5138	18.4	1600	272	5.88
		5472	21.2	1809	314	5.77
	16	2020	0.7	200	11	17.86
		2440	1.2	300	19	15.63
		2830	1.9	400	30	13.16
		3185	2.6	500	42	12.02
		3445	3.5	600	56	10.71
		3740	4.4	700	70	9.94
		3980	5.3	800	85	9.43
		4195	6.4	900	102	8.79
		4463	7.7	1000	123	8.12
		4880	10.3	1200	165	7.28
		5260	13.3	1400	213	6.58
		5440	17	1600	272	5.88
		5960	23.6	1987	378	5.26

Stator Diameter	35mm	Rotor Diameter	41.8mm
Stator Thickness	8mm	Body Length	20mm
No.of Stator Slots	12	Max Lipo Cell	4S
No.of Rotor Poles	14	ESC	40A
Motor Kv	700	Recommended Prop(inch)	EOLO CN114.5/CN125/CN135/CN155.5
No-load current	0.7A/10V	Recommended single take-off Weight	≤800g
Motor Resistance	92mΩ
Max Continuous Current	32A/30s
Max Continuous Power	520W
Weight	97g

Prop(inch)	Voltage(V)	RPM	Amps(A)	Thrust(gf)	Watts(W)	Efficiency(g/W)	Load temperature in 100% throttle
EOLO CN11*4.5	14.8	3377	1	200	15	13.51	60℃
		4071	1.8	300	27	11.26
		4567	2.6	400	38	10.40
		5055	3.6	500	53	9.38
		5524	4.6	600	68	8.81
		5893	5.8	700	86	8.15
		6360	7	800	104	7.72
		6765	8.3	900	123	7.33
		7163	9.6	1000	142	7.04
		7660	12.7	1200	188	6.38
		8000	14.4	1310	213	6.15
	16	3262	0.9	200	14	13.89
		4018	1.6	300	26	11.72
		4600	2.4	400	38	10.42
		5042	3.3	500	53	9.47
		5530	4.2	600	67	8.93
		6034	5.3	700	85	8.25
		6449	6.45	800	103	7.75
		6659	7.7	900	123	7.31
		7079	9	1000	144	6.94
		7726	11.8	1200	189	6.36
		8496	16.3	1479	261	5.67
EOLO CN12*5	14.8	2810	1	200	15	13.51	80℃ 5min
		3523	1.7	300	25	11.92
		3990	2.5	400	37	10.81
		4400	3.4	500	50	9.94
		4850	4.5	600	67	9.01
		5197	5.55	700	82	8.52
		5550	6.8	800	101	7.95
		5863	8.1	900	120	7.51
		6164	9.25	1000	137	7.30
		6685	12.3	1200	182	6.59
		7530	18.3	1556	271	5.75
	16	2832	0.9	200	14	13.89
		3522	1.5	300	24	12.50
		3995	2.3	400	37	10.87
		4384	3.1	500	50	10.08
		4821	4.2	600	67	8.93
		5138	5.2	700	83	8.41
		5523	6.3	800	101	7.94
		5858	7.4	900	118	7.60
		6133	8.7	1000	139	7.18
		6690	11.5	1200	184	6.52
		7136	14.6	1400	234	5.99
		7944	20.6	1750	330	5.31
EOLO CN13*5	14.8	2422	0.9	200	13	15.02	90℃2min
		2905	1.5	300	22	13.51
		3281	2.3	400	34	11.75
		3654	3.1	500	46	10.90
		4004	4.1	600	61	9.89
		4318	5.1	700	75	9.27
		4664	6.2	800	92	8.72
		4967	7.5	900	111	8.11
		5192	8.7	1000	129	7.77
		5622	11.6	1200	172	6.99
		6146	14.9	1400	221	6.35
		6443	18.85	1600	279	5.74
		6893	23.2	1840	343	5.36
	16	2467	0.8	200	13	15.63
		2933	1.4	300	22	13.39
		3404	2.2	400	35	11.36
		3771	3	500	48	10.42
		4159	3.8	600	61	9.87
		4468	4.8	700	77	9.11
		4760	5.8	800	93	8.62
		4977	7	900	112	8.04
		5211	8.2	1000	131	7.62
		5658	10.8	1200	173	6.94
		6080	14	1400	224	6.25
		6517	17.5	1600	280	5.71
		6869	21.8	1800	349	5.16
		7318	25.9	2047	414	4.94
EOLO CN15*5.5	14.8	1878	0.7	200	10	19.31	103℃ 20s
		2333	1.3	300	19	15.59
		2730	2	400	30	13.51
		2936	2.8	500	41	12.07
		3238	3.8	600	56	10.67
		3486	4.7	700	70	10.06
		3761	5.8	800	86	9.32
		3947	7	900	104	8.69
		4196	8.4	1000	124	8.04
		4458	11.3	1200	167	7.18
		4785	14.7	1400	218	6.44
		5074	18.5	1600	274	5.84
		5400	23.6	1800	349	5.15
		5638	30.7	2110	454	4.64
		1865	0.7	200	11	17.86
		2319	1.2	300	19	15.63
		2704	1.9	400	30	13.16
		2946	2.7	500	43	11.57
		3189	3.5	600	56	10.71
		3426	4.4	700	70	9.94
		3645	5.5	800	88	9.09
		3885	6.6	900	106	8.52
		4065	7.9	1000	126	7.91
		4476	10.6	1200	170	7.08
		4830	13.7	1400	219	6.39
		5136	17.7	1600	283	5.65
		5327	22.5	1800	360	5.00
		6032	33.6	2247	538	4.18

Tags: SunnySky , V3508 , brushless motors , high efficiency , long endurance , multirotors , 380kv , 580kv , 700kv , Stepped and Knurled design , Japanese EZO bearings.
