RG12864E Blue Backlight Graphic 128x64 LCD Display

RG12864E 128x64 LCD Display
RG12864E 128x64 LCD Display
-12 %
RG12864E 128x64 LCD Display
RG12864E 128x64 LCD Display
RG12864E Blue Backlight Graphic 128x64 LCD Display
₹611
₹695

(inc GST)

  • Stock: In Stock
  • ₹6 FlyRobo Cashback.
  • SKU: FR-01-234
    5 or more ₹597
    15 or more ₹590

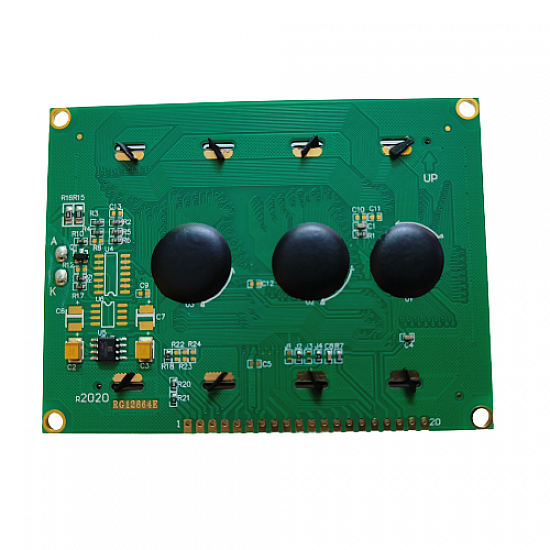

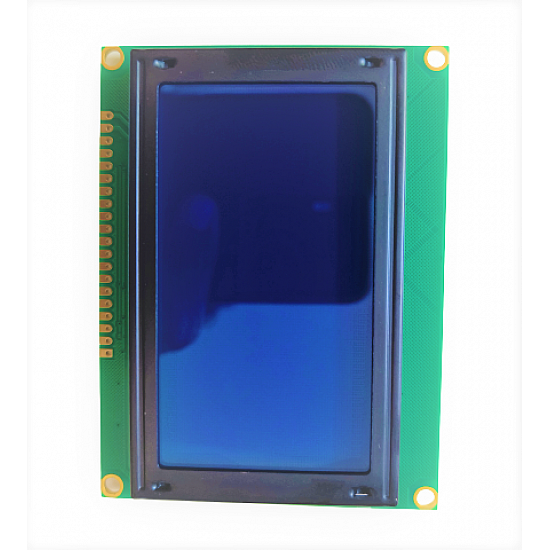

The RG12864E series is a common Chip-On-Board LCD with built-in controller NT7107/NT7108 and 12864 pixels in a visible size of 72.0mm x 40.0mm (or equivalent).A broad variety of backlight colours are offered in STN, FSTN, or Blue-STN Technologies.Additionally, this device has "built in" negative voltage.

Features:-

  • LCD Graphics 128 x 64
  • Available in Positive or Negative STN, FSTN, or Blue-STN Mode
  • There are polarizers that are reflective, transflective, or transmissive.
  • Dimensions: 113 x 53 millimetres.
  • Area for Viewing: 72.0 x 40.0 mm
  • 66.52mm x 33.24mm Active Area; 0.48mm x 0.48mm Dot Size; 0.52mm x 0.52mm Dot Pitch
  • 5V On-Board Controller for the 6800 Interface Power Supply: NT7107/NT7108 (or equivalent)
  • -20°C to +70°C as the normal operating temperature

Package includes:-

1 X RG12864E 128x64 LCD Display

Technical
Input Voltage

3.3V ~ 6V

Interface

6800

Pixel Color

Yellow/Green

Pixel Resolution

128x64

Power

5V

Viewing angle

>160degree

Weight

76 grams

Dimensions (LxWxH)

113mmx53mmx10mm
