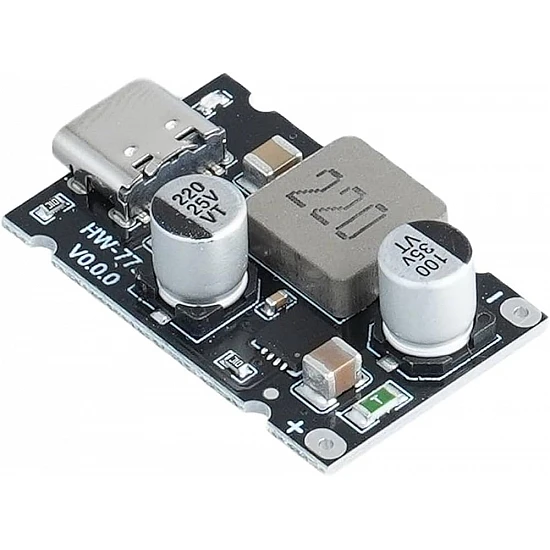

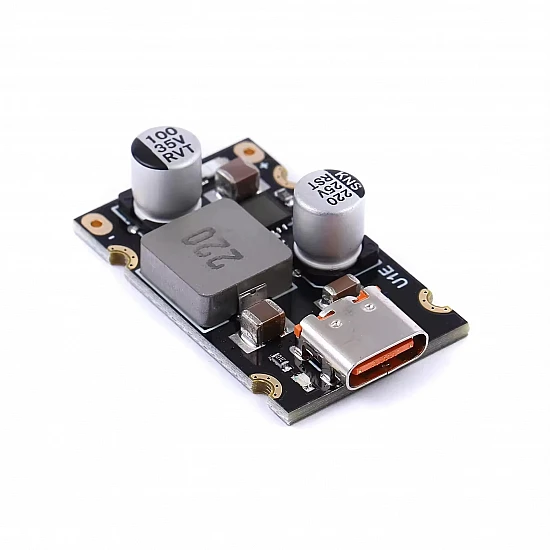

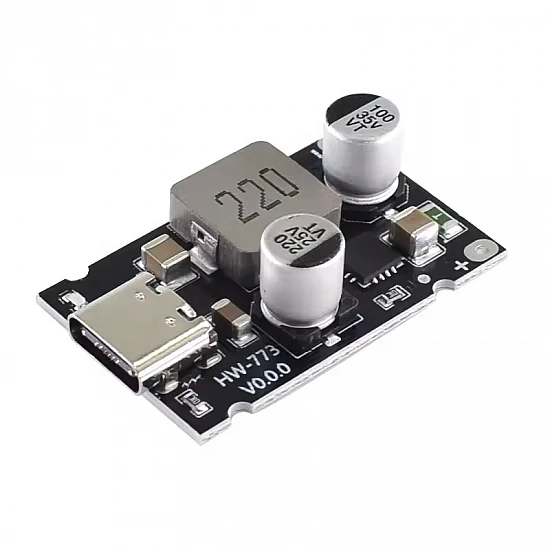

PD65W Fast Charging Module Standard Edition Type-C PD3.1 PPS QC3.0 SCP

The PD65W Fast Charging Module Standard Edition is a high-efficiency DC-DC step-down converter designed for high-speed charging in various DIY and professional power projects. This compact module supports the latest PD3.1 (PPS) standard, alongside QC3.0 and Huawei SCP, delivering up to 65W of power for smartphones and laptops. Its wide input range of 8V to 30V and exceptional conversion efficiency of up to 97% ensure rapid charging with minimal energy waste. The Standard Edition features a streamlined PCB layout with solder pads for input, making it ideal for integration into tight spaces or custom enclosures. With a comprehensive suite of safety protections, including over-voltage, short-circuit, and over-temperature safeguards, this module is a reliable choice for automotive power upgrades, solar charging stations, and custom power bank builds.

Key Features:

• High-Speed 65W Output: Capable of charging PD-compatible laptops, MacBooks, and high-end tablets.
• Broad Protocol Compatibility: Supports Apple PD3.1 PPS, Qualcomm QC3.0, Huawei SCP/FCP, and Samsung AFC.
• Ultra-Efficient Conversion: 92%~97% efficiency minimizes heat while maximizing power delivery.
• Intelligent PD Negotiation: Automatically adjusts output (3.3V-21V) based on device requirements.

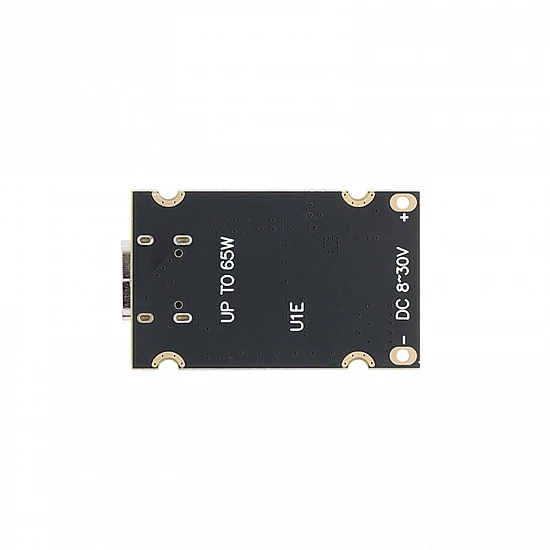

• Compact Standard Edition: Small 32x20mm footprint without DC jack, ideal for custom embedded projects.
• Comprehensive Safety: Built-in over-voltage, under-voltage, short-circuit, and thermal protection.

Package Includes:

1 x PD65W Fast Charging Module Standard Edition with Type-C Interface
