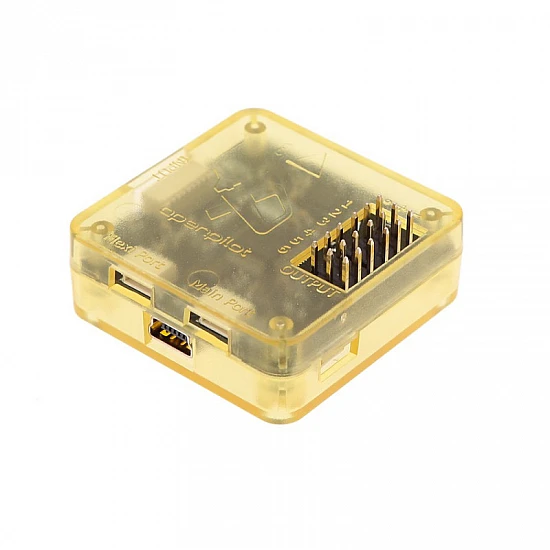

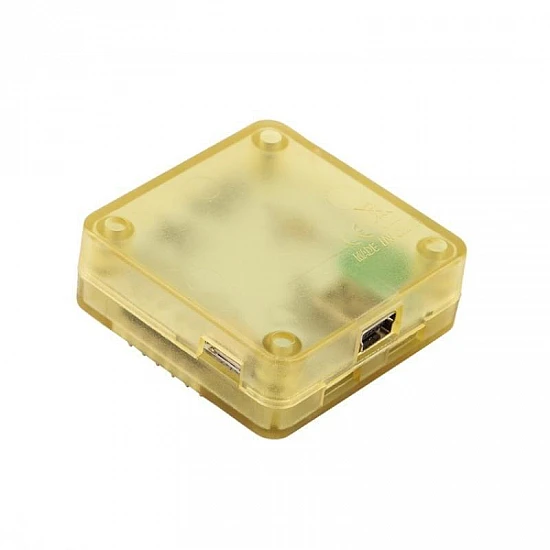

OpenPilot CC3D EVO Flight Controller Straight Pin

OpenPilot CC3D EVO Flight Controller Straight Pin
OpenPilot CC3D EVO Flight Controller Straight Pin
OpenPilot CC3D EVO Flight Controller Straight Pin
OpenPilot CC3D EVO Flight Controller Straight Pin
Out Of Stock
OpenPilot CC3D EVO Flight Controller Straight Pin
OpenPilot CC3D EVO Flight Controller Straight Pin
OpenPilot CC3D EVO Flight Controller Straight Pin
OpenPilot CC3D EVO Flight Controller Straight Pin
OpenPilot CC3D EVO Flight Controller Straight Pin
₹1,679

(inc GST)

  • Stock: Out Of Stock
  • ₹16 FlyRobo Cashback.
  • SKU: FR-02-825
    5 or more ₹1,593
    15 or more ₹1,545

OpenPilot CC3D EVO Flight Controller is a Straight Pin that has a smooth feature that makes it directly compatible with satellite receivers without the need for any additional cables. It also supports S.BUS. Evo is equipped with a powerful 32-bit STM32 processor with 128kb Flash and 20kb RAM. The 3-axis MEMs technology is used for both gyro and accelerometer.

The difference between the OpenPilot CC3D EVO Flight Controller Straight Pin and OpenPilot CC3D EVO Flight Controller side Pinboards is only one that is connector pins  (one has a Straight pin and the other have a 90º side pin.)

Features:

CC3D EVO Hardware Features:

  • Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
  • 3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
  • Tiny 36 x 36 mm 4 layer PCB for superior electrical noise reduction and flight performance.
  • Support Software for Windows, Mac, and Linux.
  • Direct high-speed USB support with no drivers required, a true plug and play device.
  • Spektrum satellite receiver support.
  • Futaba S-BUS hardware support.
  • Innovative Flexi-port technology for superior port flexibility.
  • 4Mbits on-board EEPROM for configuration storage.

Flexiport:

Copter Control also offers the innovative Flexiport which provides either I2C connectivity or a second serial port. Flexiport gives Copter Control the flexibility to use either I2C and a single serial port or dual serial port, according to your connectivity needs.

Sensors and Components:

  • 3-axis Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,
  • Supports several common RC inputs: 6 PWM channels, combined PPM, Spektrum/JR DSM2,  DSMJ, DSMX satellites, and Futaba S.Bus receivers.
  • Simultaneous support for multiple receivers.
  • ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream, 4 PWM output channels
  • MainPort functions (configurable): serial telemetry (default), GPS, S.Bus, Spektrum/JR satellites
  • 10 PWM outputs to servos or ESC’s, or for camera stabilization
  • Camera stabilization supports up to 3axis  camera mounts with stabilization and manual control from any of configured receivers.
  • Onboard USB connectivity for easy configuration.
  • USB and serial telemetry and configuration
  • Supported by powerful OpenPilot GCS
  • 4 Mbit onboard memory
  • 3C Quaternion based complementary filter running at 500Hz

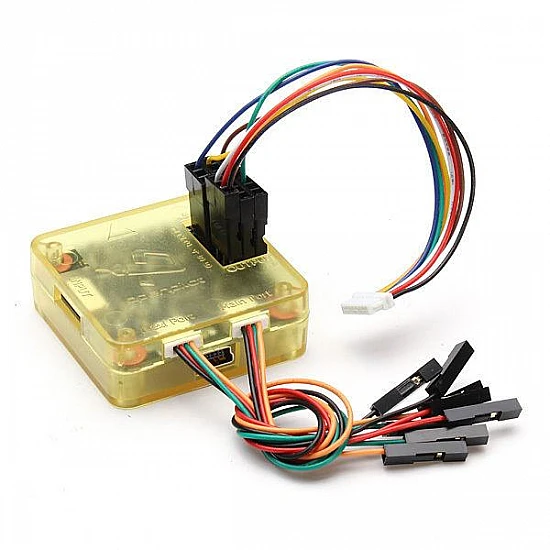

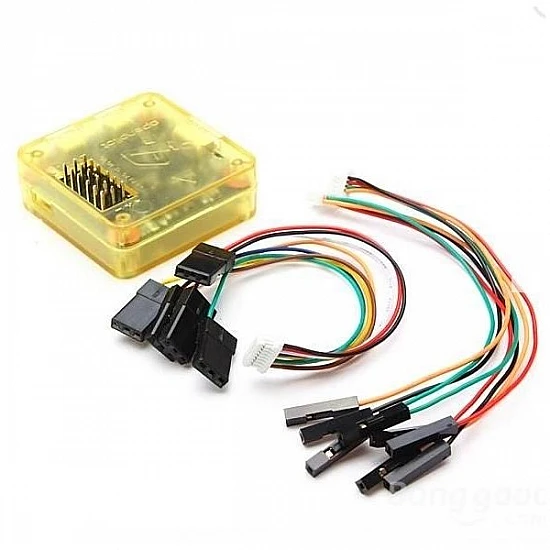

Package Includes:

1 x OpenPilot CC3D EVO Flight Controller Straight Pin

2 x Connecting Wires.

1 x PC plastic shell.

Technical
Model

OpenPilot CC3D EVO Straight Pin

Input Voltage

5 VDC

Length

39 mm

Height

15 mm

Width

39 mm

Flight Controller
Processor

Micro-Controller STM32, Sensor IC: MPU6000

Sensors

3-Axis Gyrometer, Accelerometer, Barometer
