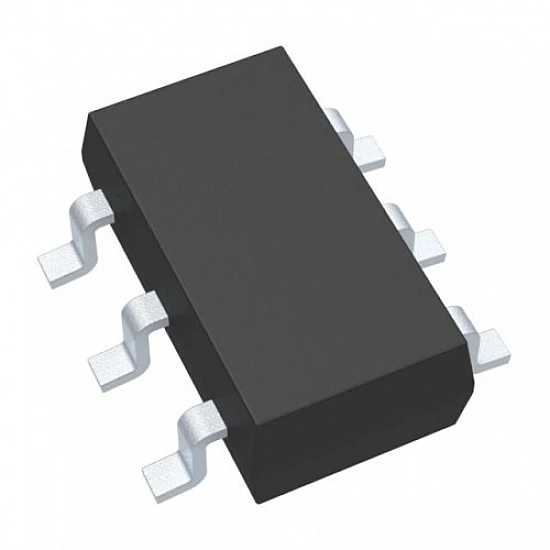

MCP4725A0T-E/CH 12-Bit Digital-to-Analog Converter with EEPROM SOT23-6

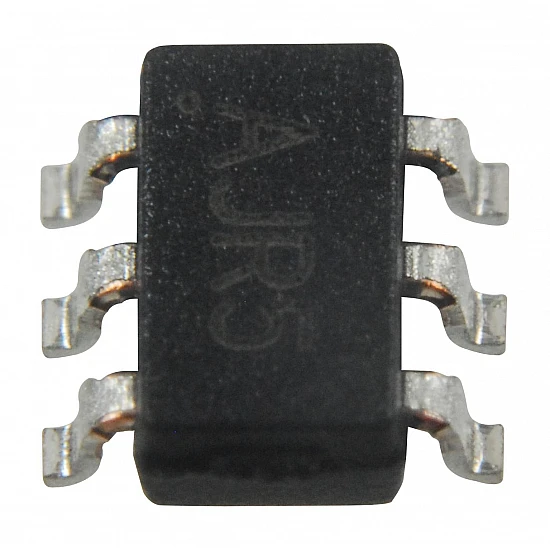

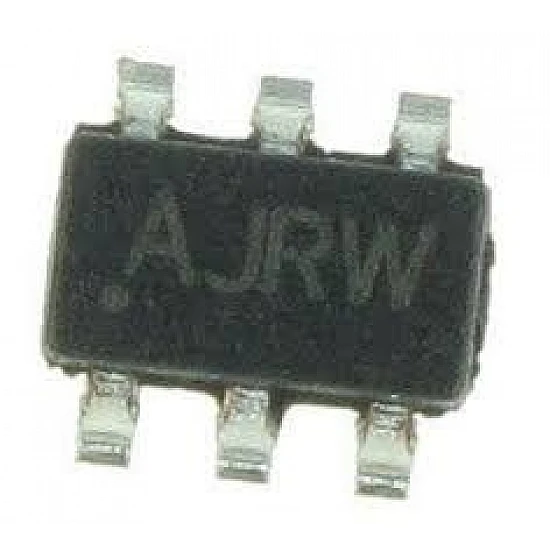

The MCP4725A0T-E/CH is a single-channel, 12-bit buffered voltage output digital-to-analog converter (DAC) designed for high-precision and low-power applications. Housed in a compact SOT-23-6 package and marked with the AJ silk screen, this device features integrated non-volatile memory (EEPROM). This allows the DAC to store its input code and configuration settings, ensuring the output is available at the desired voltage immediately after power-up without host intervention. With a rail-to-rail output amplifier and a high-speed I2C interface (up to 3.4 Mbps), it is perfect for sensor calibration, offset trimming, and precise signal generation in space-constrained industrial, automotive, and portable electronics.

Features:

• 12-Bit Resolution: 4096 output levels for high-precision analog signal control.
• Integrated EEPROM: Stores DAC settings and configuration bits during power-off cycles.
• Rail-to-Rail Output: Internal amplifier maximizes dynamic range across the full supply voltage.
• Ultra-Low Power: Typical supply current of 210 µA with multiple power-down modes (1kΩ, 100kΩ, 500kΩ).
• High-Speed I2C: Supports Standard, Fast, and High-Speed modes for efficient data transfer.
• Automotive Grade: AEC-Q100 qualified with a wide temperature range of -40°C to +125°C.

Package Includes:

1 x MCP4725A0T-E/CH 12-Bit Digital-to-Analog Converter with EEPROM SOT23-6
