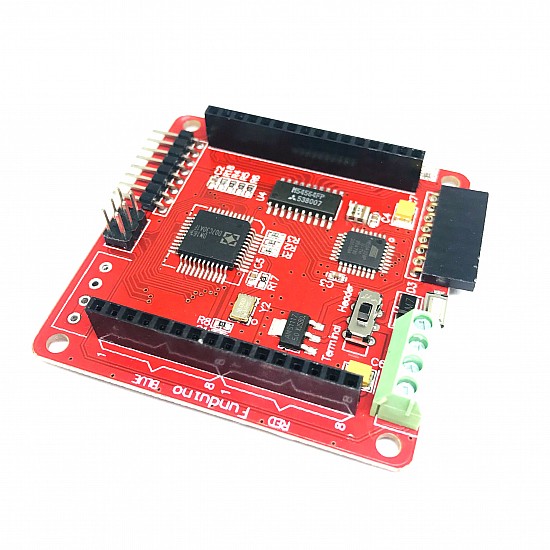

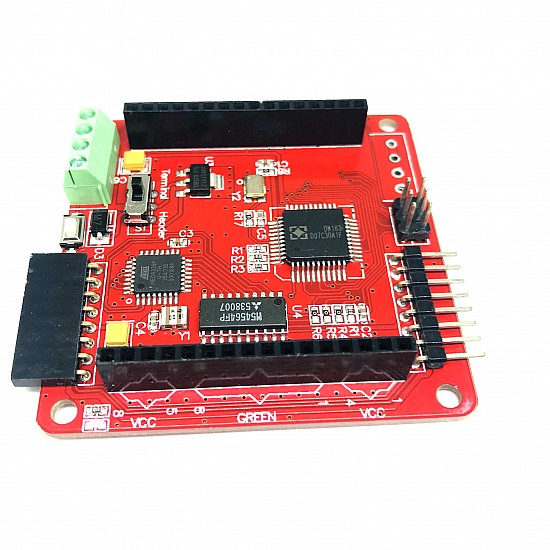

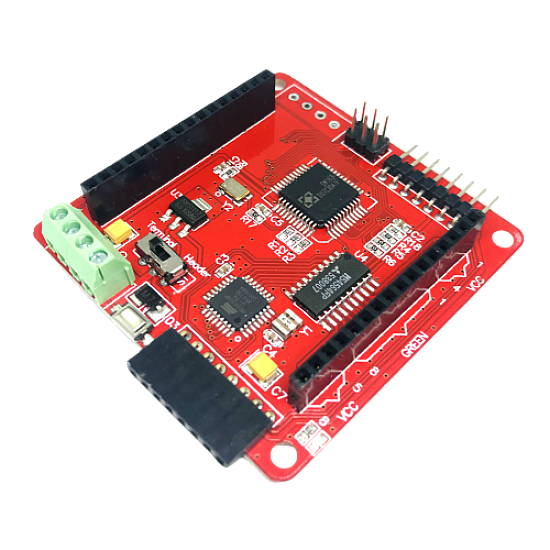

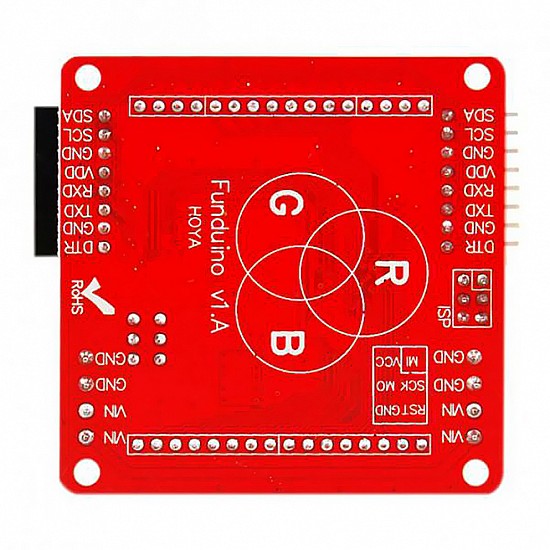

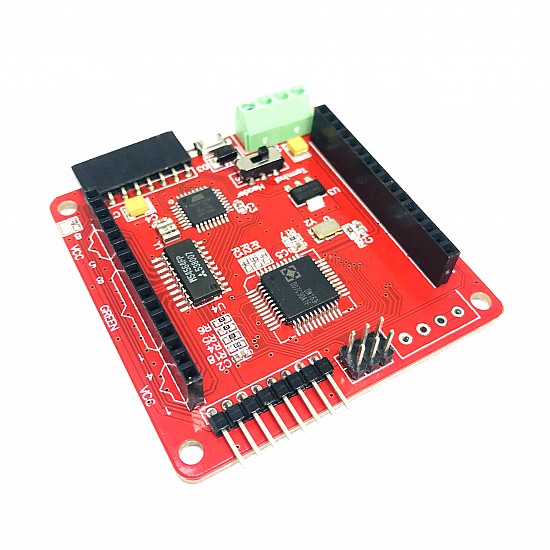

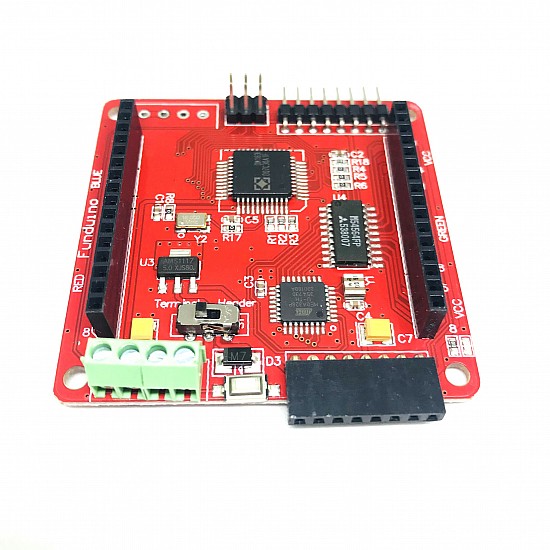

Colorduino RGB LED Dot Matrix Display Driver Board Module

Colordunio RGB is a specialized RGB full-color dot matrix design a control board module, which in addition to the RGB matrix can be independently driven, but also can be used as a control panel to use Arduino. It pairs the M54564 with a single DM163 constant current driver.

This gives the ATmega328 more CPU bandwidth for performing other tasks. Colorduino is easy to cascade by IIC and Power interface.

Features:

• Hardware 16MHz PWM support
• GPIO and ADC interface
• It has Hardware UART and IIC communication with easy cascading
• 24 constant current channels of 100mA each
• 8 super source driver channels of 500mA each
• 8bits colors support with 6bits correction for each color in every dots

Package Includes:

1 x Colorduino RGB LED Dot Matrix Display Driver Board Module
