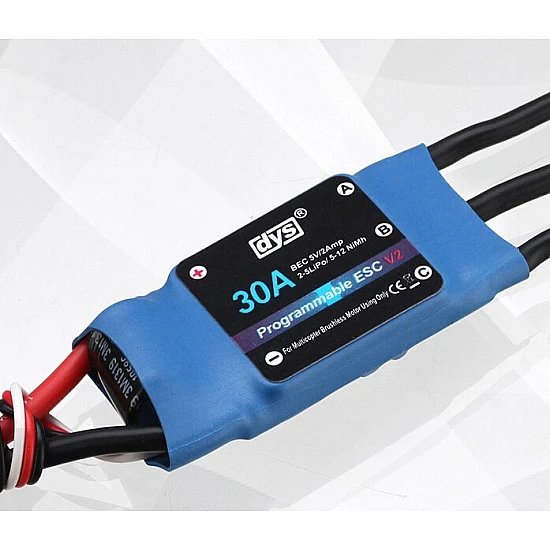

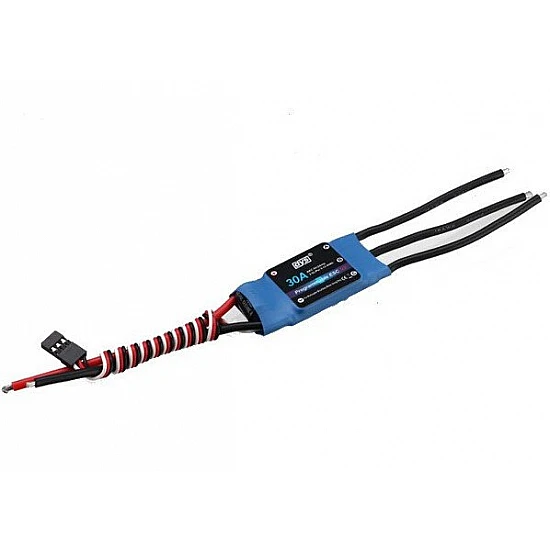

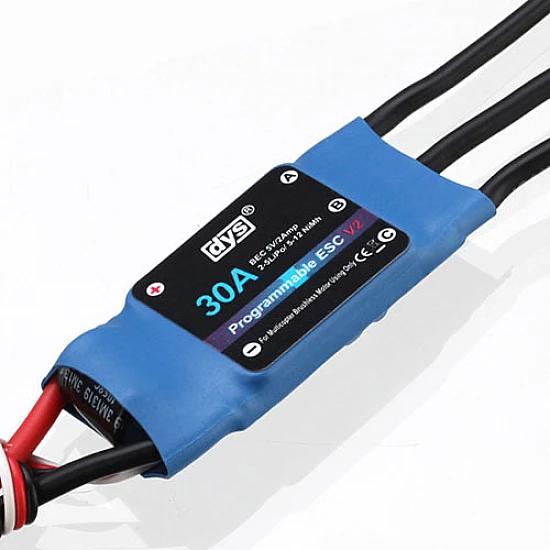

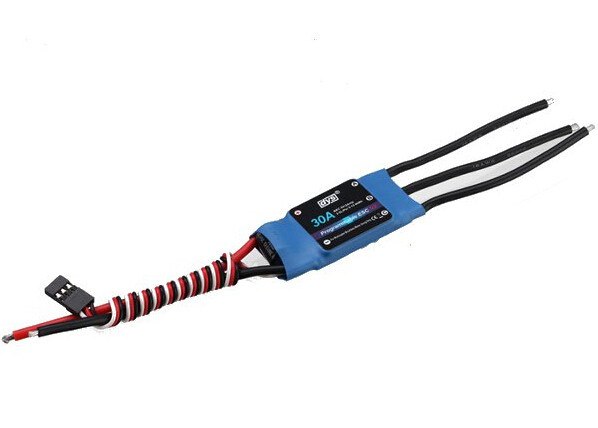

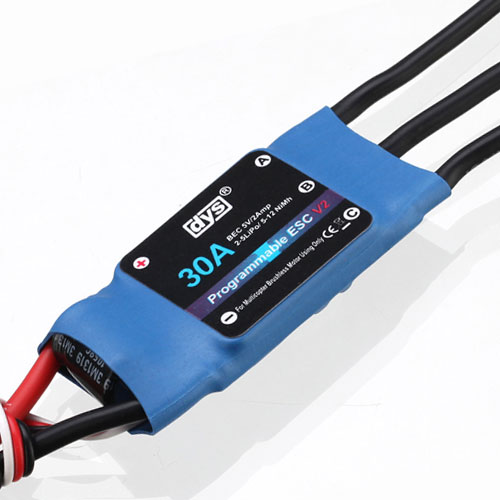

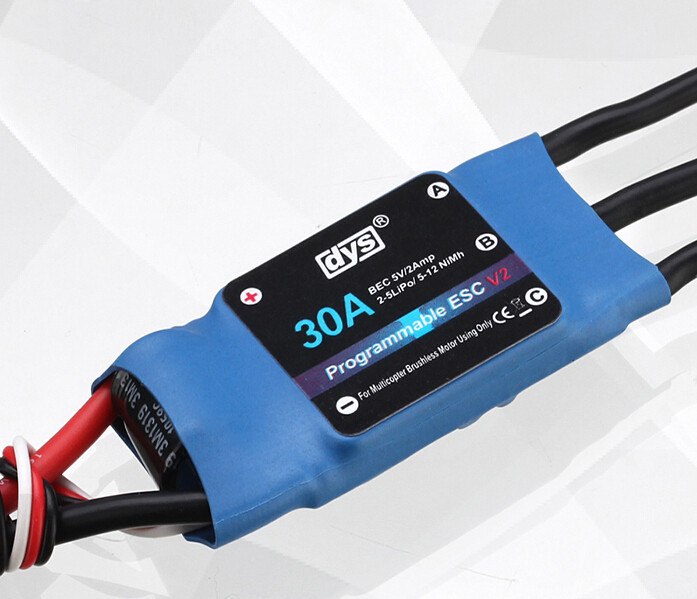

- This is a 30A ESC, Multi-copter Brushless Motor Speed Controller with a running current of 30A. The power input uses extreme low output resistance greatly enhances the power stability and has a protective effect on the battery. Separately voltage regulator IC for the microprocessor. Providing good anti-jamming capability. Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.
- Running current:30A(Output: Continuous 30A, Burst 40A up to 10 Secs.)
- Input Voltage: DC 6-16.8V(2-4S Lixx)
- BEC: 5V 2amp.
- Size: 46mm (L) * 26mm (W) * 11mm (H).
- Weight: 23g
- With SimonK updated firmware for multicopter
- The power input uses extreme low output resistance greatly enhances power stability and has a protective effect on the battery.
- Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
- Separately voltage regulator IC for the microprocessor. providing the good anti-jamming capability.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
- Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.
1 X ESC (Electronic Speed Control)
