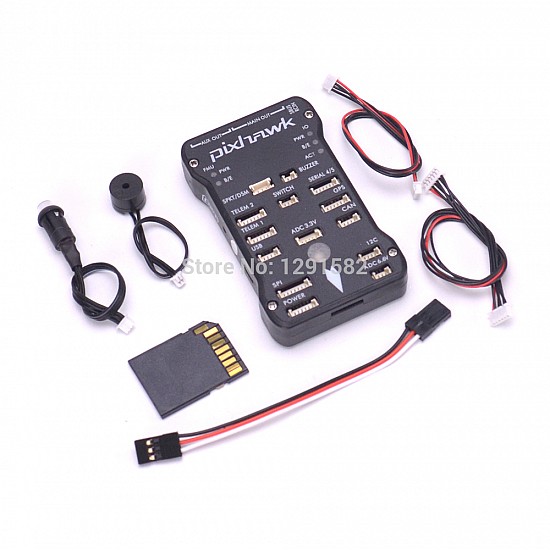

Pixhawk PX4 Autopilot 2.4.8 32 Bit Flight Controller kit

Multirotor Flight Controller Pixhawk PX4 Autopilot 2.4.8 32 Bit Flight Controller kit

Features:

1. The advanced 32-bit ARM CortexM4 high-performance processors, can run NuttX RTOS real-time operating system;
2. 14 PWM / servo output;
3. Bus interface (UART, I2C, SPI, CAN);
4. The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe;
5. Provide automatic and manual modes;
6. Provide redundant power input and failover;
7. Multicolor LED lights;
8. Provide multi-tone buzzer Interface
9. Micro SD recording flight data;

Specifications:

Microprocessor

1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor

Sensor

1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer

Interface

1 .5 high voltage compatible UART 1, 2 with hardware flow control
2. 2 CAN
3.Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface


Power module :

The APM 2.6 Power Module is a simple way of providing your APM 2.6 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 6S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

Note: The Power Module is only designed to power APM, a RC receiver and APM accessories (GPS, 3DR radio). It is not designed to power servos. Use your aircraft\'s own ESC/BEC for that.

Specifications:

Max input voltage: 28V

Max current sensing: 90A

Voltage and current measurement configured for 5V ADC

Switching regulator outputs 5.3V and 3A max

6-pos DF13 cable plugs directly to APM 2.5\'s \'PM\' connector

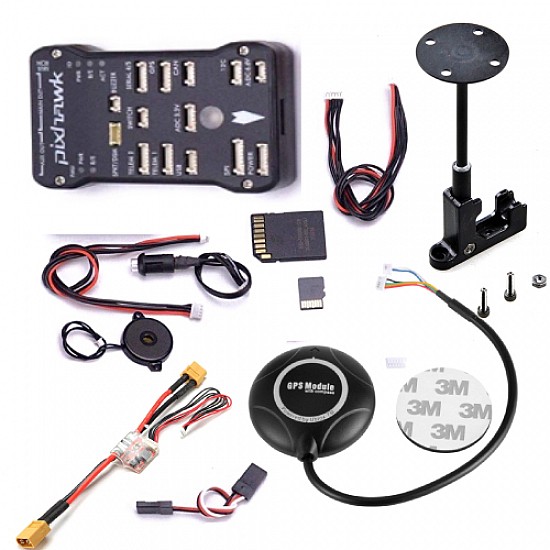

Packing list:

Pixhawk 2.4.8  32bit ARM Flight Controller x 1
Safety button x 1
Buzzer x 1
16G TF card  x1
M7N GPS with GPS holder× 1
Cables
power module x 1




NOTE: Before connect with the computer, you need to insert the SD card first , then flash the program, otherwise the LED indicator will not light up.
Please make sure you read these wikis  before you use.
