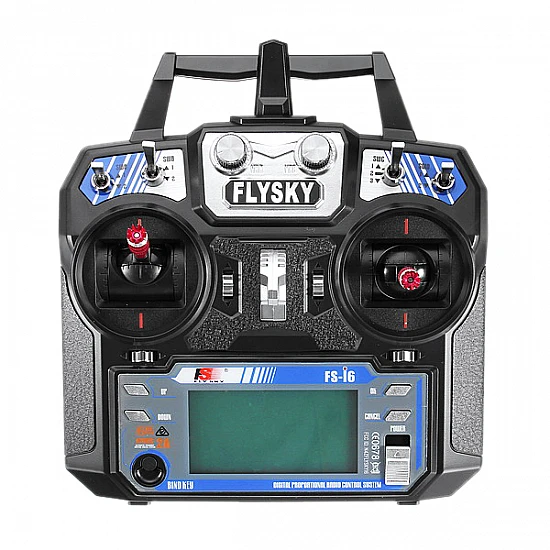

FlySky FS-i6 2.4G 6CH AFHDS Transmitter With FS-iA6B Receiver for RC FPV Drone
Click Image for Gallery
- Channels: 6 Channels
- Model Type: Glider/Heli/Airplane
- RF Range: 2.40-2.48GHz
- Bandwidth: 500KHz
- Band: 142
- RF Power: Less Than 20dBm
- 2.4ghz System: AFHDS 2A and AFHDS
- Code Type: GFSK
- Sensitivity: 1024
- Low Voltage Warning: less than 4.2V
- DSC Port: PS2;Output:PPM
- Charger Port: No
- ANT length: 26mm*2(dual antenna)
- Transmitter Weight: 392g
- Transmitter Size: 174x89x190mm
- Power: 6V 1.5AA*4
- Display mode: Transflective STN positive type, 128*64 dot matrix VA73*39mm,white backlight.
- On-line update:yes
- Color: Black
- Certificate: CE0678,FCC
- Model Memories: 20
- Control Range: 500m

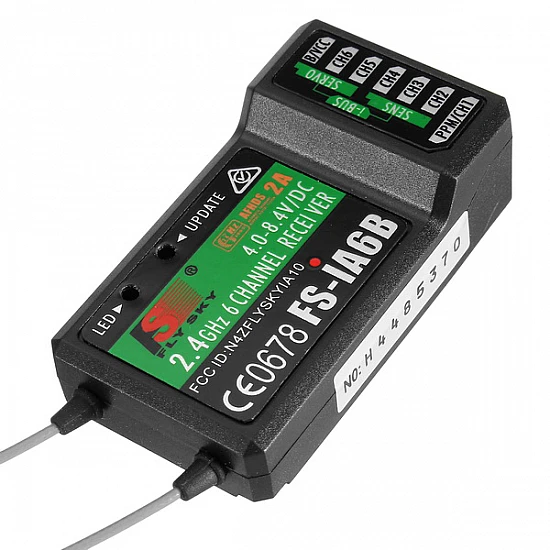

- Item Name: FS-iA6B
- Channel: 6
- Frequency Range: 2.4055--2.475GHZ
- Band Width Number: 140
- Transmitting Power: ≤ 20dBm
- RF Receiver Sensitivity: -105dbm
- 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
- Encoding: GFSK
- Antenna Length: 26mm * 2 (dual antenna)
- Input Power: 4.0-6.5V DC
- Dimension: 47 x 26.2 x 15mm
- Color: Black
- i-Bus Interface: Yes
- Data Acquisition Interface: Yes
- Model Type: Airplane / Glider / Helicopter
- Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
- Works in the frequency range of 2.405 to 2.475GHz.This band has been divided into 142 independent channels,each radio system uses 16 different channels and 160 different types of hopping algorithm.
- This radio system uses a high gain and high quality multi directional antenna,it covers the whole frequency band. Associated with a high sensitivity receiver,this radio system guarantees a jamming free long range radio transmission
- Each transmitter has a unique ID,when binding with a receiver,the receiver saves that unique ID and can accepts only data from the unique transmitter.this avoids picking another transmitter signal and dramatically increase interference immunity and safety.
- This radio system uses low power electronic components and sensitive receiver chip.The RF modulation uses intermittent signal thus reducing even more power consumption.
- AFHDS2A system has the automatic identification function,which can switch automatically current mode between single-way communication mode and two-way communication mode according to the customer needs.
- AFHDS2A has built-in multiple channel coding and error-correction,which improve the stability of the communication,reduce the error ratio and extend the reliable transmission distance.
1 x Flysky FS-i6 transmitter
1 x Flysky FS-iA6B Receiver
